Machines & equipment for sale

Vixen Surface Treatments Tristar

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Excellent Condition, Seen powered at RSW
Stock No
DY1324J
Manufacturer
Vixen Surface Treatments
Model
TRISTAR 504
Year of Manufacture
1999
Serial
TS 504 1030 H99
New or Used
Used (Second Hand)
Work Envelope (WxDxH mm)
520mm Dia x 2125mm long
Process Stages
4
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
1090Kgs
External Dimensions (WxDxH mm)
4200 x 1500 x 1350

Description

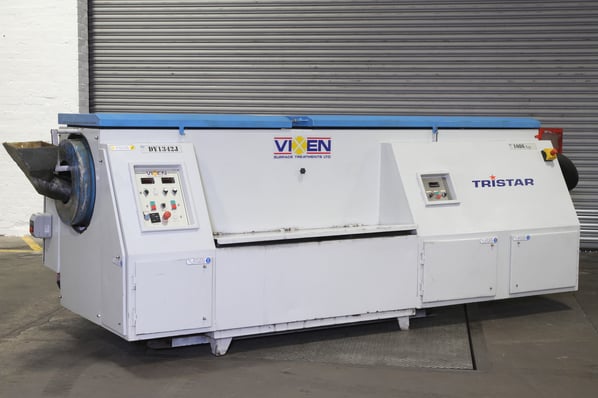

The Tristar rotary drum machine has been designed to provide a continuous throughput of smaller parts that need to be degreased and dried in large quantities.

Process  includes Immersion, Spray Wash, Spray Rinse and Dry


Typical applications would be for the washing and drying of nuts, bolts, screws, fasteners or similar small parts.

The Tristar 500 houses a rotating drum which has an 'Archimedes' continuous screw fitted to the internal wall. This means that as the drum rotates, the turning of the screw gently moves the parts forwards through the 4 stages of the machine.

These machines have been developed to provide a continuous throughput of parts that need to be degreased, and dried in large quantities. This 4 stage model includes immersion wash, spray wash, rinse & hot air dry.

Features include:

  • Stainless steel drum 520 mm dia x 2125 long
  • Fitted with variable drive speed control.
  • Electrically heated,
  • Adjustable spray bar pressure.
  • Coarse and fine fluid filtration
  • Digital temperature control
  • Inlet Ø 240mm
  • Discharge height - 590mm

pdf icon Print / Download Vixen Surface Treatments Tristar Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
