Machines & equipment for sale

Lando Mario Centrifugal Drier

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Availability
Available for immediate collection
Condition
Seen working by RSW, Excellent Condition, Current Model, Seen powered at RSW
Stock No
VY1190
Manufacturer
Lando Mario
Model
CENTRIF 480
Year of Manufacture
2000
New or Used
Used (Second Hand)
Work Envelope (WxDxH mm)
Basket 470mm Dia x 270 deep
Process Stages
1
Other Info
40 litre bowl // 50kg Capacity
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
344
External Dimensions (WxDxH mm)
1270 x 750 x 1000

Description

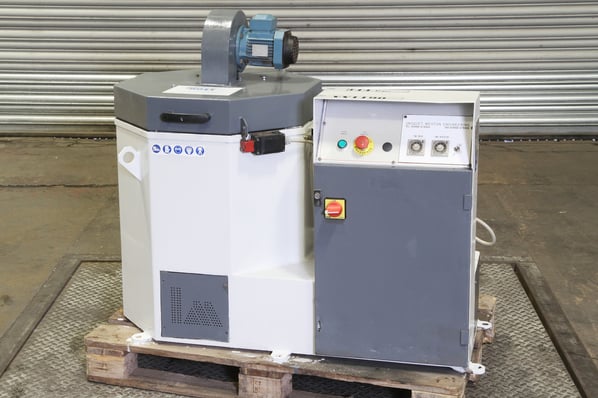

Lando Mario Centrifugal Spin Dryer

A hot air centrifuge for the removal of liquids and the drying of components.

Numerous industrial facilities use Land Mario centrifuges to reduce their processing costs. The centrifuges are designed and constructed to provide many years of efficient, reliable and cost effective operation. The addition of a Lando Mario centrifuge can raise profits, increase quality and recover treatment solutions and oils in facilities that perform machining, electroplating, heat treating and many other processes.

Lando Mario centrifuges features and advantages:

• extended life air heater
• simple to operate
• easy to maintain
• heavy duty construction for durability
• Lid with safety interlock
• Remote mounted control cabinet

Operation

Perforated baskets are removed from the centrifuge and filled with parts or machining chips or swarf. The loaded basket is inserted into the centrifuge and the operator closes the lid.

When the lid is closed it is automatically locked and the centrifuge process begins. A light on the operator’s panel provides visual feedback that the machine is in operation.

After a preset interval or manual actuation of the stop button the centrifuge is quickly stopped using the motor as a non-wearing regenerative brake. Once the centrifuge is safely stopped the lid automatically unlocks to allow the operator to open the lid and remove the basket.

Structure

1. Motor/Drive System

A special centrifuge motor with non-wearing regenerative brake serves as the drive, which is connected to the drive shaft of the centrifuge through a drivebelt

2. Locking of the lid

During operation, the lid is locked electromagnetically.

3. Heating system

The heating is effected via a heating element built into the underside of the lid and housed within a steel fabricated enclosure,  across the surface of which air is blown by means of a blower located on top of the centrifuge lid and controlled by temperature control by means
of a thermocouple

5. Control

With the exception of t he heater element and fan, the control panel of the centrifuge is installed adjacent to centrifuge, but still located within the sturdy machine sub frame for ease of operation.







pdf icon Print / Download Lando Mario Centrifugal Drier Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
