Amarc Heavy Duty Drum Warming Oven

Stock No
OY1998
Manufacturer
Amarc
Model
CCEF-4F
Year of Manufacture
2000
Serial
A110
New or Used
Used (Second Hand)
Internal Size (WxDxH mm)
1380 x 1440 x 1535
Max Temp
180° C
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
730
External Dimensions (WxDxH mm)
2350 x 1750 x 1950

Description

An Armach 180° C  Electric Batch Oven which is suitable for almost any application from simple drying processes to exacting metal treatments

The Armac standard drum warming oven is an electric, forced air convection Batch Ovens are suitable for almost any application from simple drying processes to exacting metal treatments and all types of production work including heavy work loads.

This oven is designed to accommodate 4 x 205 litre drums, but due to its higher temperature capability, can also be used for multiple processes, such as varnish baking, paint stoving, rubber curing, resin bonding and mould heating processes

General oven specifications:-

  • Digital control instruments.
  • Digital timer
  • Single air recirculation fan for even temperature uniformity.
  • Front loading swing aside doors
  •  Usable internal dimension of 1380 x 1440 x 1535 mm
  • 18 kW Heater loading
  • External dimensions of 2350 x 1750 x 1950 mm
  • Air  vent for passive  ventilation of heated chamber.
  • 415 Volt 36 Amp supply'



This industrial oven is in working order but would benefit from the following refurbishments;

  • New paneling for the roof and rear sections, at the same time replacement of the internal insulation would be recommended.
  • Re painting.





pdf icon Print / Download Amarc Heavy Duty Drum Warming Oven Datasheet

Additional files

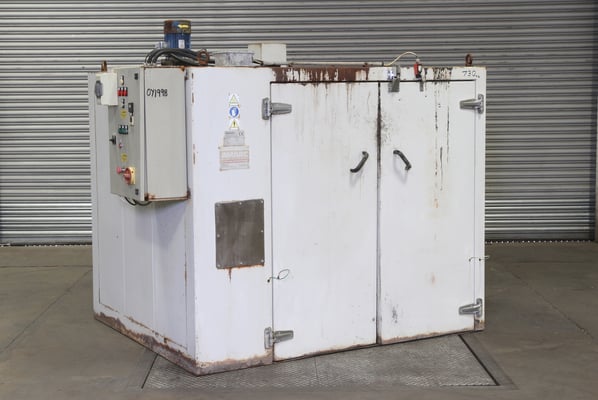

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
