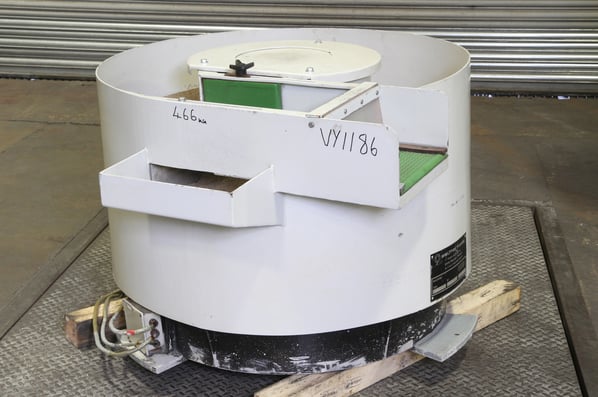

Walther Trowal Semi Automatic Vibratory Bowl Maize Dryer

Stock No
VY1186
Manufacturer
Walther Trowal
Model
G200
Year of Manufacture
1992
Serial
2531
New or Used
Used (Second Hand)
Capacity
200 Litres
Type
Mass parts maize drier
Other Info
Multi Pass Mass parts maize drier
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
466kg
External Dimensions (WxDxH mm)
Ø1200 x 1100 mm

Description

The Trowal model G range of vibratory driers have been designed to complete the finishing process by offering an effective means of drying wet components by passing them through a medium consisting of maizorb, ground wallnut shells or wood chips.

The model G range of machines are ideal for mass produced components which require a clean surface without any water stains.

This item was originally designed to be used with Walther Trowal Vibratory Bowl Type Wet Finishing Machine (VY1187) (sold separately).

FUNCTIONAL PRINCIPLE

The induced vibration generates a gentle rolling movement of parts and drying medium. The moisture on the parts is absorbed by the heated drying medium. The constant relative movement between parts and medium has not only a drying, but also a polishing effect on the parts.

TECHNICAL FEATURES

- Helically shaped work channel without built-in ramp allows gentle component movement.
- Rubber-lined in feed chute built into outer wall of the work bowl facilitates the loading of finished components coming from the machine(s).
- adjustable heating system with extremely effective heating performance.
- Heating system with replaceable heating elements which are mounted in the non-vibrating machine base.
- Integrated screening device allows batch a continuous process.

This machine was originally used within a continuous processing line with VY1187 vibratory processing bowl, which provided wet processing and drying of  products in a semi automatic process.

TECHNICAL SPECIFICATIONS

  • Vibratory drier, type G200
  • Motor power (kW) 10
  • Speed (min) 1500
  • high/ low heat control
  • Max. heating capacity (kW) 6 // 3kW
  • Weight, empty (kg) 495
  • Usable volume* (Liter)140
  • PMax.dimensions of workpiece** (mm) 180


* Ratio of work pieces and drying media in general 3 : 1 (3 parts of medium : 1 part of work pieces)

** Work pieces measured diagonally

DIMENSIONS

Main dimensions (mm) G200
Outer.max.1185
Outer diameter of work bowl 1200
Height of funnel opening 1100
Width of funnel opening 400
Usable width of screen 325



pdf icon Print / Download Walther Trowal Semi Automatic Vibratory Bowl Maize Dryer Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
