Vixen Surface Treatments Top Loading Single Stage Basket Spray Wash

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
Seen working by RSW, Good Condition, Current Model
Stock No
DY1323
Manufacturer
Vixen Surface Treatments
Model
JW99
New or Used
Used (Second Hand)
Work Envelope (WxDxH mm)
Basket 960 Ø x 280 (Max depth 425mm.)
Process Stages
Single stage wash
Other Info
All wet surfaces are stainless steel.
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
350
External Dimensions (WxDxH mm)
1750 x 1700 x 1140mm*

Description

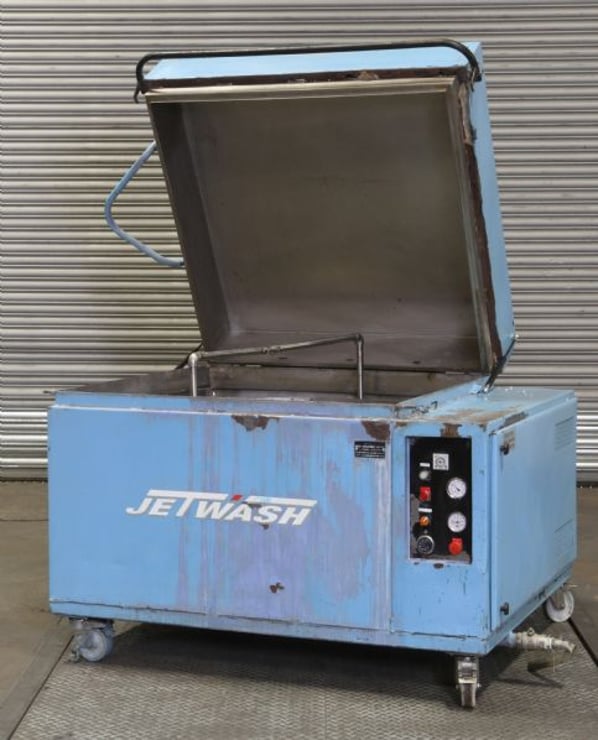

Jetwash JW99 Top Loading - Aqueous Washing Machine

The Jetwash JW99 is a stainless steel constructed cellular type rotary hot was spray machine , which uses towns water and any number of environmentally friendly detergents.

The unit consists of a steel clad double skin construction over a stainless steel machine, with an 18 mm injected cavity insulation gap offering maximum thermal insulation to the hot water tank and an extremely strong build rigidity.

Designed to automatically wash / degrease a wide variety of industrial and commercial components.

The operation is very simple, you just load the basket , close the lid , press start. The cycle is is adjustable for both time and temperature resets automatically each time the lid id opened at the end of the cycle.

The wash basket remains stationary while the spray boom revolves around it . This means that any delicate components will not get damaged by shock movements.

The inbuilt stainless steel pumps deliver over 150 litres of water every minute providing plenty of power to remove stubborn and difficult contamination from the components. This water is returned to the tank and is filtered to remove debris via an easily accessible collection filter basket.

The spray bars fully envelope the basket offering a full  360° wash pattern. For ease of loading larger parts, the spray bars can be split in the middle and pushed aside to allow the parts to be loaded directly from overhead with a crane or forklift unit.

The wash cycle of the most components are typically cleaned and flash dried within just a few minutes.

STANDARD FEATURES

*Fully stainless steel internal panels

*Insulated double skin construction

*Fully automatic

ADDITIONAL FITTED FEATURES

*Fully stainless steel construction with steel clad insulation and externally mounted oil collection trap













pdf icon Print / Download Vixen Surface Treatments Top Loading Single Stage Basket Spray Wash Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
