Industrial Cooling Systems (ICS) IC640 Chiller and iFC150 Air Blast Cooler system

Direct From Site Clearance

Direct Site Clearance Price [?]
£ 17,950 (+ VAT)
Clearance ends
26 July 2019 16:00 GMT while stocks last
Part of a Direct Site Clearance

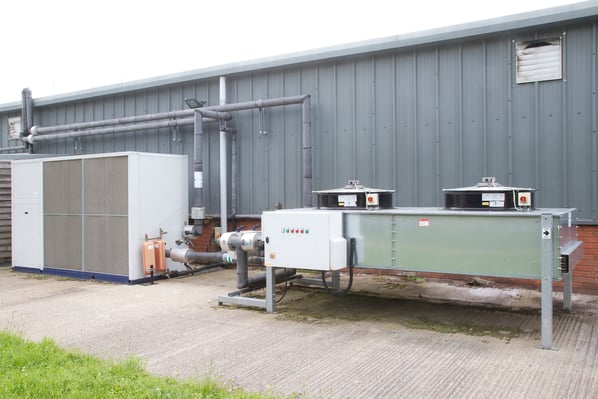

ICS Chiller Installation
Condition
From a working environment, Seen working by RSW, Excellent Condition, Current Model
Location
Cambridge, UK
Stock No
FLO-001
Manufacturer
Industrial Cooling Systems (ICS)
Model
IC-640
Year of Manufacture
2015
Serial
2200257842
New or Used
Used (Second Hand)
Ave. cooling capacity
146.4
Ave. Water Flow Rate
8.1/48 m3h
Other Info
Includes ICS Air Blast Cooler system
Location
Cambridge, UK
Weight (kgs)
1703
External Dimensions (WxDxH mm)
1255 x 3298 x 2119 mm

Description

ABOUT THE i-CHILLER RANGE

The fully packaged, EcoDesign compliant, air-cooled i-Chiller range is designed specifically for reliable and efficient process cooling.

The unique evaporator is immersed within a generously sized storage tank. This design ensures safe and reliable operation even during large fluctuations in cooling demand – something often encountered within various industrial applications.

Each unit comes with a 3-bar pump as standard with the option to customise with a 5-bar pump – allowing for demanding industrial applications.

ENERGY & PROCESS EFFICIENCY:

  • High efficiency finned coil in-tank evaporator with copper tubes & aluminium fins allowing for variable flow rates
  • Hydraulic circuit includes integral 3-bar pump, drain valve, overflow & water pressure gauge and process connections
  • Scroll compressor(s) operating with R410a refrigeran
  • Copper tube / aluminium fin condenser coils combined with axial condenser fan



RELIABILITY:

  • Internal water bypass to protect pump against dead heading
  • Phase monitor to protect the unit against phase loss & reversal
  • Galvanised, epoxy coated carbon steel structure
  • Electrical panel protection rating: IP44



EASE OF OPERATION & MAINTENANCE:

  • High & low refrigerant pressure gauges & switches
  • Easy to use and externally visible advanced electronic controller
  • Digital input for remote on/off control
  • Volt-free contacts for remote general alarm signal
  • Mains isolator
  • Manual filling kit comprising atmospheric (open) expansion tank





iC640

iC650

iC660

Atmospheric fill & vent tank

Remote on/off

Volt free alarm contact

Water pressure gauge

Low pressure safety switch

High pressure safety switch

Antifreeze protection

Outlet temperature indication

Condensing pressure fan switch

Tank level sensor

Alarm history

Automatic compressor rotation

High pressure transducers

High condensing pressure compressor unloading function

Low ambient to -20°C

O

O

O

High efficiency brushless axial fans

O

O

O

P5 High pressure pump

O

O

O

Run / standby pumps

O

O

O

Phase cut fan speed controller

O

O

O

Anti-Floodback

O

O

O

Water filter

O

O

O

Manual bypass

O

O

O

Pressure relief bypass

O

O

O

Compressor soft start

O

O

O

Electronic expansion valve

O

O

O

Condensers coil coating

O

O

O

Pre Heat inline heater

O

O

O

Trace heating for frost protection

O

O

O



Loose kits







Manual bypass kit

O

O

O

Pressure relief bypass kit

O

O

O

Pressurisation kit

O

O

O

Advanced remote control kit

O

O

O

RS485 Modbus trend kit

O

O

O

Gateway Modbus trend kit

O

O

O

xWEB Supervisor kit

O

O

O

xWEB Supervisor kit with GPRS

O

O

O

Remote X

O

O

O

Master/Slave modularity kit

O

O

O

Glycol filling kit

O

O

O









iC640

iC650

iC660



Cooling Capacity (1)

kW

119

140

154



Total absorbed power (1)

kW

30.8

34.3

38.9



EER (1)

-

3.87

4.07

3.97



Cooling Capacity (2)

kW

88.1

103

114



Total absorbed power (2)

kW

35.4

40.1

44.8



EER (2)

-

2.49

2.50

2.55



Min / max ambient temps. (3)

°C

-5/+44

-5/+43



Min / max fluid supply temps. (4)

°C

-10/+30



Compressors



Cooling circuits

No.

2



Compressors per circuit

No.

2



Capacity control

%

0-25-50-75-100



SEPR HT

-

5.11

5.30

5.08



Electrical power supply (4)



Power

V/Ph/Hz

400/3-PE/50



Auxiliary

V/Ph/Hz

24-230/1/50



Maximum absorbed power

kW

48.89

55.49

61.39



Maximum absorbed current

A

81.55

93.47

103.19



Starting current

A

176.12

192.00

218.92



Fan



Fans number

No.

2



Total airflow

m3/h

45,800

44,400

42,800



Nominal power (per fan)

kW

1.9



Hydraulic group





P3

Water flow rate (5)

m3/h

9.5/36.0

Available pump head pressure (6)

barg

3.6/2,4

Nominal absorbed power

kW

4.0





P5

Water flow rate (5)

m3/h

12.0/42.0

Available pump head pressure (6)

barg

5.3/4.3

Nominal absorbed power

kW

7.5



Tank volume

I

500



Max working pressure

barg

6



Water connections

BSP

2½’’



Sound levels (7)







Sound power

dB(A)

89.5



Sound pressure

dB(A)

61.5



Dimensions & installed weight



Length

mm

3,298



Width

mm

1,255



Height

mm

2,119



Weight

kg

1,701

1,750

1,786



(1)  Evaporator outlet / inlet temperatures +15°C/+20°C, external ambient temperature +25°C, total absorbed power includes compressors & fans

(2)   Evaporator outlet / inlet temperatures +7°C/+12°C, external ambient temperature +35°C, total absorbed power includes compressors & fans

(3)   Standard unit configuration operating with evaporator outlet / inlet temperatures +15/+20°C

(4)   Protection class IP54

(5)   Minimum / maximum water flow rates achievable by pump

(6)   Available head pressure at outlet of unit at the minimum / maximum water flow rates

(7)  Sound power determined on basis of measurements taken in accordance with ISO 3744. Sound pressure at 10m average value obtained in free field on a reflective surface at 10m distance from the side of the condenser coils & at a height of 1.6m from the unit support base. Values with tolerance ± 2dB. The sound levels refer to unit operation under full load in nominal conditions.

Unless otherwise specified, the above data refers to unit configuration with standard axial fans & fitted with standard P3 pump. Data declared according to UNI EN 14511-2013.

SEPR HT: Data declared in compliance with the European Regulation (EU) 2016/2281 with regard to ecodesign requirements for cooling products and high temperature process chillers.



ABOUT THE ICS AIR BLAST COOLER

The ICS Free Cooler system uses a dry air cooler with a 3-way valve to divert and cool the process fluid in a conventional chiller system.

 As soon as the outside air temperature drops 1°C below the returning process fluid, the 3-way valve diverts the process fluid across the Free Coolers efficient heat exchanger and fans to remove some or all of the heat in the process fluid.

 Therefore, the chiller is only required to remove the remaining heat – reducing the required energy consumption and extending the chiller lifespan.

 When external temperatures are even cooler, the chiller will no longer be required to operate, and efficient EC fans will reduce in speed to maintain the required supply temperature, further reducing the operational costs.



 ENERGY & PROCESS EFFICIENCY:

  • High efficiency aluminium finned and copper tube heat exchanger
  • Optimised air flow paths
  • Energy efficient variable speed electrically commutated (EC) Fans
  • Non-Ferrous process fluid circuit





RELIABILITY:

  • Galvanised and painted casing and legs
  • IP65 electrical control panel



EASE OF OPERATION & MAINTENANCE:

  • Digital input for remote on/off
  • Local fan isolation
  • Lamps
  • Volt free contact for remote general alarm
  • Mains isolator









iFC150

iFC260

Cooling capacity (1)

kW

150

259

Total absorbed power (1)

kW

8.59

11.98

EER (1)

-

17.46

21.62

Flow rate (1)

kW

7.89

13.63

Supply temperature

°C

15

Return temperature

°C

20

Ambient below which full freecooling capacity occurs



°C



9



7.5

Full load current

A

13.14

17.55

Sound power

LwA

95

97

Sound pressure @10m

LpA

64.0

65.2

Inlet connection size

-

PN16 DN65

PN16 DN80

Outlet connection size



PN16 DN65

PN16 DN80

Glycol

%

25

Power supply

V/Ph/Hz

400/3/50

Coil volume

l

106

372

Length

mm

4,125

3,825

Width

mm

1,944

2,664

Height

mm

1,582

1,583

Weight

kg

851

1,097













pdf icon Print / Download Industrial Cooling Systems (ICS) IC640 Chiller and iFC150 Air Blast Cooler system Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
