Machines & equipment for sale

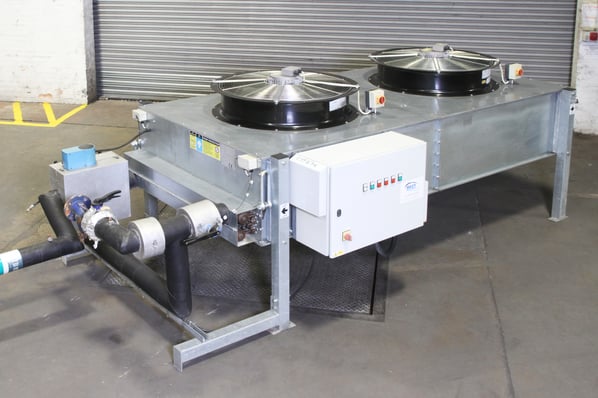

Industrial Cooling Systems (ICS) ICS Twin Fan Air Blast Cooler

Direct From Site Clearance

Price [?]
Please call on +44 (0) 1922 45 8000
Part of a Direct Site Clearance
ICS Chiller Installation
Condition
From a working environment, Seen working by RSW, Excellent Condition, Current Model
Location
Cambridge, UK
Stock No
CY587R
Manufacturer
Industrial Cooling Systems (ICS)
Model
iFC150
Year of Manufacture
2015
Serial
C 54115
New or Used
Used (Second Hand)
Ave. cooling capacity
150Kw
Ave. Water Flow Rate
7.89
Location
Cambridge, UK
Weight (kgs)
851
External Dimensions (WxDxH mm)
2000 x 4200 x 1550 mm

Description

ABOUT THE ICS AIR BLAST COOLER

The ICS Free Cooler system uses a dry air cooler with a 3-way valve to divert and cool the process fluid in a conventional chiller system.

 As soon as the outside air temperature drops 1°C below the returning process fluid, the 3-way valve diverts the process fluid across the Free Coolers efficient heat exchanger and fans to remove some or all of the heat in the process fluid.

 Therefore, the chiller is only required to remove the remaining heat – reducing the required energy consumption and extending the chiller lifespan.

 When external temperatures are even cooler, the chiller will no longer be required to operate, and efficient EC fans will reduce in speed to maintain the required supply temperature, further reducing the operational costs.

 ENERGY & PROCESS EFFICIENCY:

  • High efficiency aluminium finned and copper tube heat exchanger
  • Optimised air flow paths
  • Energy efficient variable speed electrically commutated (EC) Fans
  • Non-Ferrous process fluid circuit

 RELIABILITY:

  • Galvanised and painted casing and legs
  • IP65 electrical control panel

 EASE OF OPERATION & MAINTENANCE:

  • Digital input for remote on/off
  • Local fan isolation
  • Lamps
  • Volt free contact for remote general alarm
  • Mains isolator







iFC150

iFC260

Cooling capacity (1)

kW

150

259

Total absorbed power (1)

kW

8.59

11.98

EER (1)

-

17.46

21.62

Flow rate (1)

kW

7.89

13.63

Supply temperature

°C

15

Return temperature

°C

20

Ambient below which full freecooling capacity occurs



°C



9



7.5

Full load current

A

13.14

17.55

Sound power

LwA

95

97

Sound pressure @10m

LpA

64.0

65.2

Inlet connection size

-

PN16 DN65

PN16 DN80

Outlet connection size



PN16 DN65

PN16 DN80

Glycol

%

25

Power supply

V/Ph/Hz

400/3/50

Coil volume

l

106

372

Length

mm

4,125

3,825

Width

mm

1,944

2,664

Height

mm

1,582

1,583

Weight

kg

851

1,097



pdf icon Print / Download Industrial Cooling Systems (ICS) ICS Twin Fan Air Blast Cooler Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
