Machines & equipment for sale

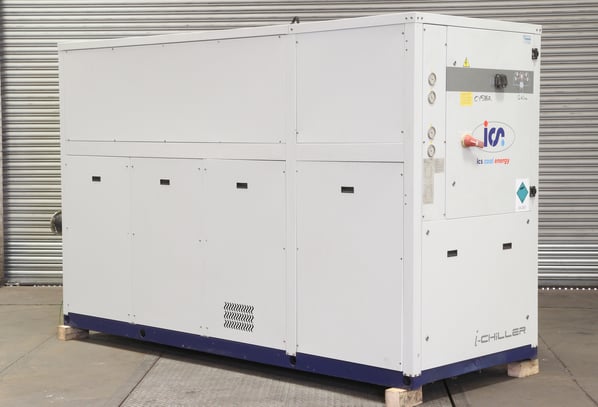

Industrial Cooling Systems (ICS) ICS IC -640 Refridgerant Chiller

Direct From Site Clearance

Price [?]
Please call on +44 (0) 1922 45 8000
Part of a Direct Site Clearance
ICS Chiller Installation
Condition
From a working environment, Seen working by RSW, Excellent Condition, Current Model
Location
Cambridge, UK
Stock No
CY586R
Manufacturer
Industrial Cooling Systems (ICS)
Model
IC-640
Year of Manufacture
2015
Serial
2200257842
New or Used
Used (Second Hand)
Ave. cooling capacity
146.4Kw
Ave. Water Flow Rate
8.1/48 m3h
Location
Cambridge, UK
Weight (kgs)
1703
External Dimensions (WxDxH mm)
1255 x 3298 x 2119 mm

Description

ABOUT THE i-CHILLER RANGE

The fully packaged, EcoDesign compliant, air-cooled i-Chiller range is designed specifically for reliable and efficient process cooling.

The unique evaporator is immersed within a generously sized storage tank. This design ensures safe and reliable operation even during large fluctuations in cooling demand – something often encountered within various industrial applications.

Each unit comes with a 3-bar pump as standard with the option to customise with a 5-bar pump – allowing for demanding industrial applications.

ENERGY & PROCESS EFFICIENCY:

  • High efficiency finned coil in-tank evaporator with copper tubes & aluminium fins allowing for variable flow rates
  • Hydraulic circuit includes integral 3-bar pump, drain valve, overflow & water pressure gauge and process connections
  • Scroll compressor(s) operating with R410a refrigeran
  • Copper tube / aluminium fin condenser coils combined with axial condenser fan



RELIABILITY:

  • Internal water bypass to protect pump against dead heading
  • Phase monitor to protect the unit against phase loss & reversal
  • Galvanised, epoxy coated carbon steel structure
  • Electrical panel protection rating: IP44



EASE OF OPERATION & MAINTENANCE:

  • High & low refrigerant pressure gauges & switches
  • Easy to use and externally visible advanced electronic controller
  • Digital input for remote on/off control
  • Volt-free contacts for remote general alarm signal
  • Mains isolator
  • Manual filling kit comprising atmospheric (open) expansion tank





iC640

iC650

iC660

Atmospheric fill & vent tank

Remote on/off

Volt free alarm contact

Water pressure gauge

Low pressure safety switch

High pressure safety switch

Antifreeze protection

Outlet temperature indication

Condensing pressure fan switch

Tank level sensor

Alarm history

Automatic compressor rotation

High pressure transducers

High condensing pressure compressor unloading function

Low ambient to -20°C

O

O

O

High efficiency brushless axial fans

O

O

O

P5 High pressure pump

O

O

O

Run / standby pumps

O

O

O

Phase cut fan speed controller

O

O

O

Anti-Floodback

O

O

O

Water filter

O

O

O

Manual bypass

O

O

O

Pressure relief bypass

O

O

O

Compressor soft start

O

O

O

Electronic expansion valve

O

O

O

Condensers coil coating

O

O

O

Pre Heat inline heater

O

O

O

Trace heating for frost protection

O

O

O



Loose kits







Manual bypass kit

O

O

O

Pressure relief bypass kit

O

O

O

Pressurisation kit

O

O

O

Advanced remote control kit

O

O

O

RS485 Modbus trend kit

O

O

O

Gateway Modbus trend kit

O

O

O

xWEB Supervisor kit

O

O

O

xWEB Supervisor kit with GPRS

O

O

O

Remote X

O

O

O

Master/Slave modularity kit

O

O

O

Glycol filling kit

O

O

O









iC640

iC650

iC660



Cooling Capacity (1)

kW

119

140

154



Total absorbed power (1)

kW

30.8

34.3

38.9



EER (1)

-

3.87

4.07

3.97



Cooling Capacity (2)

kW

88.1

103

114



Total absorbed power (2)

kW

35.4

40.1

44.8



EER (2)

-

2.49

2.50

2.55



Min / max ambient temps. (3)

°C

-5/+44

-5/+43



Min / max fluid supply temps. (4)

°C

-10/+30



Compressors



Cooling circuits

No.

2



Compressors per circuit

No.

2



Capacity control

%

0-25-50-75-100



SEPR HT

-

5.11

5.30

5.08



Electrical power supply (4)



Power

V/Ph/Hz

400/3-PE/50



Auxiliary

V/Ph/Hz

24-230/1/50



Maximum absorbed power

kW

48.89

55.49

61.39



Maximum absorbed current

A

81.55

93.47

103.19



Starting current

A

176.12

192.00

218.92



Fan



Fans number

No.

2



Total airflow

m3/h

45,800

44,400

42,800



Nominal power (per fan)

kW

1.9



Hydraulic group





P3

Water flow rate (5)

m3/h

9.5/36.0

Available pump head pressure (6)

barg

3.6/2,4

Nominal absorbed power

kW

4.0





P5

Water flow rate (5)

m3/h

12.0/42.0

Available pump head pressure (6)

barg

5.3/4.3

Nominal absorbed power

kW

7.5



Tank volume

I

500



Max working pressure

barg

6



Water connections

BSP

2½’’



Sound levels (7)







Sound power

dB(A)

89.5



Sound pressure

dB(A)

61.5



Dimensions & installed weight



Length

mm

3,298



Width

mm

1,255



Height

mm

2,119



Weight

kg

1,701

1,750

1,786



(1)  Evaporator outlet / inlet temperatures +15°C/+20°C, external ambient temperature +25°C, total absorbed power includes compressors & fans

(2)   Evaporator outlet / inlet temperatures +7°C/+12°C, external ambient temperature +35°C, total absorbed power includes compressors & fans

(3)   Standard unit configuration operating with evaporator outlet / inlet temperatures +15/+20°C

(4)   Protection class IP54

(5)   Minimum / maximum water flow rates achievable by pump

(6)   Available head pressure at outlet of unit at the minimum / maximum water flow rates

(7)  Sound power determined on basis of measurements taken in accordance with ISO 3744. Sound pressure at 10m average value obtained in free field on a reflective surface at 10m distance from the side of the condenser coils & at a height of 1.6m from the unit support base. Values with tolerance ± 2dB. The sound levels refer to unit operation under full load in nominal conditions.

Unless otherwise specified, the above data refers to unit configuration with standard axial fans & fitted with standard P3 pump. Data declared according to UNI EN 14511-2013.

SEPR HT: Data declared in compliance with the European Regulation (EU) 2016/2281 with regard to ecodesign requirements for cooling products and high temperature process chillers.

pdf icon Print / Download Industrial Cooling Systems (ICS) ICS IC -640 Refridgerant Chiller Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
