Machines & equipment for sale

Marr Electrically Heated Basket Washing Machine

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
Seen working by RSW, Seen powered at RSW
Stock No
DY1318
Manufacturer
Marr
Model
Orbit 600
Serial
RBO 392
Condition
Seen working by RSW, Seen powered at RSW
Work Envelope (WxDxH mm)
Ø600 x 400mm high
Process Stages
Single stage spray wash
Other Info
Oil skimmer and in line solution filter
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
225
External Dimensions (WxDxH mm)
1300 x 970 x 1150

Description

The Orbit washer is an industrial quality, water based detergent cleaning machine built for tough cleaning needs. Efficiency and long life are guaranteed from the heavy gauge 304 stainless steel construction with 25mm thick energy efficient thermal cladding around the tank and a double skinned lid providing high quality insulation and lower energy costs.

Rapid cleaning of all component surfaces with safe detergents is assured by rotating components in the motor driven basket in front of V-pattern spray jets, orientated from three axis towards the components.

The hot cleaning wash solution is driven by a high pressure stainless steel 4.2bar pump through stainless steel pipework at a constant basket rotation of 5 revolutions per minute that uses all of the available pump spray pressure for cleaning the components and not diverting part of it into rotating the basket.

This system enables high wash solution flow rates to impact on the components and deliver superior cleaning results within a wide range of applications.

The compact machine footprint and ease of operation for high quality cleaning provides a winning combination. Basket size 600mm dia x 100mm high (400mm clear under the boom). Electric solution heating, process timer, solution filter strainer and oil skimmer

Features include:

- Wash strainer
- Solution filtration
- Electric heating
- Low level sump protection
- Auto water makeup
- Door safety interlock
Oil skimmer
- Process wash timer

Technical specifications:

Basket Diameter (mm) 620
Max Load Height (mm) 400
Max Load Weight (kg) Concentric loading 50
Loading Height (mm) 775
Basket Drive (kW) 0.125
Basket Speed (r.p.m.) 5
Pump flow rate (ltr/min) 100 @45 psi
Spray Pressure (bar) 4.2
Tank Capacity (litres) 100
Heater Capacity (kW) 6
Typical Temp°C 40-65

Services:

- Electricity: 400v 3Phase +Neutral + Earth 50Hz
- Mains water: ½ inch BSP
- Drainage: 1 inch BSP

Overall dimensions:

- Width (mm) 1195,
- Depth (mm) 1090,
- Depth (with lid open) 1200,
- Machine Height (to top of lid) (mm) 1190

pdf icon Print / Download Marr Electrically Heated Basket Washing Machine Datasheet

Additional files

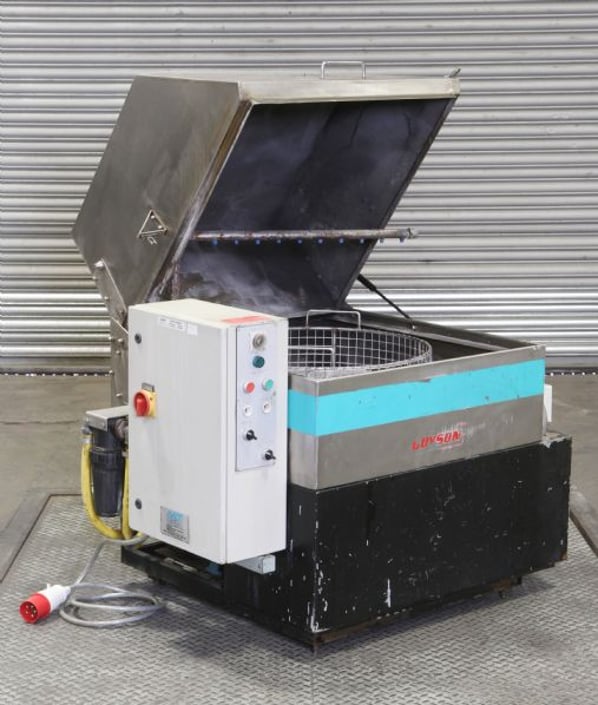

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
