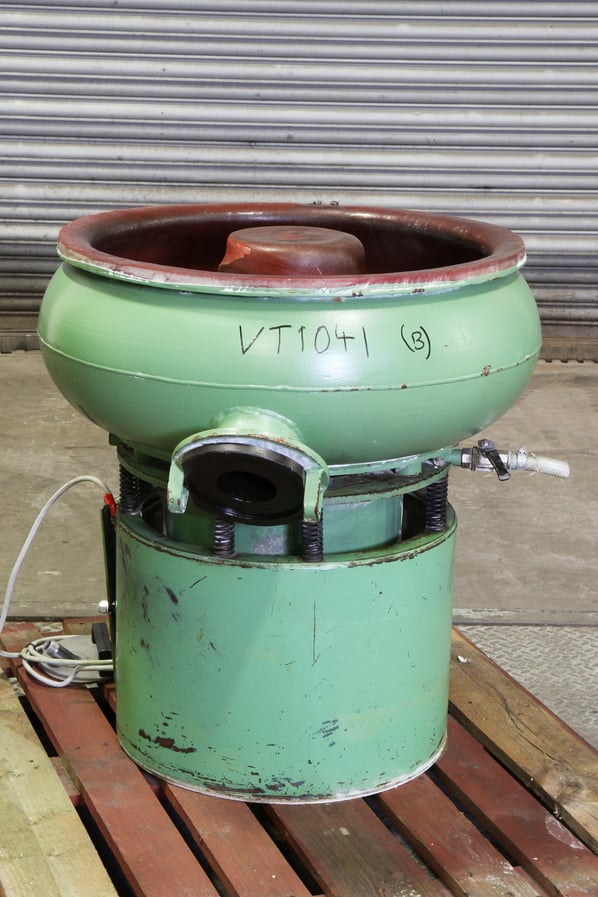

Tauss Vibratory Finishing Bowls Type TSV-100

Stock No
Year of Manufacture
New or Used
Used (Second Hand)
100 litres
Vibratory mass finishing bowl
Our Central Warehouse, Aldridge, UK
Weight (kgs)
External Dimensions (WxDxH mm)
660 x 940 x 1740 mm


The Tauss TSV-100 rotary vibrators are set high technological standards. Their functional design, the use of high-quality materials and excellent workmanship guarantee a long service life and low maintenance costs.

The Tauss mass finishing manufacturing process is used to deburr, radius, descale, burnish, clean, and brighten a large number of relatively small workpieces.

In this batch-type operation, specially shaped pellets of media and the workpieces are placed into the bowl of a vibratory machine. The bowl of the vibratory tumbler and all of its contents are then vibrated. The vibratory action causes the media to rub against the workpieces which yield the desired result.

Unlike similar tumbling processes, this process can finish internal features, such as holes. Its also quicker and quieter. The process is performed in an open tub so that the operator can easily observe if the required finish has been obtained.

The Tauss  TSV-100 rotary vibrators are packed with advanced control features including variable speed drive motor, auto / manual process control, dosing and rinse water function with associated pumps and water control.

High quality coatings and industrial grade paints guarantees a long-term attractive appearance as well as a good level of corrosion protection.

Tauss TSV-100 rotary vibrators are constructed with the outer wall of the process channel having a cast polyurethane curved profile.

The curved exterior wall of the process channel optimizes the rotational movement of the parts/ media mass which is especially beneficial for the processing of light-weight and delicate parts which do not easily immerse into the media but tend to float on the top such as jewelry, spectacle parts and composite materials.

They are also particulary suitable for use with the ISF / REM Superfinishing systems.

The TSV 100 is a 100 litres capacity bowl for manual or bulk discharge for parts for product separation.

pdf icon Print / Download Tauss Vibratory Finishing Bowls Type TSV-100 Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
