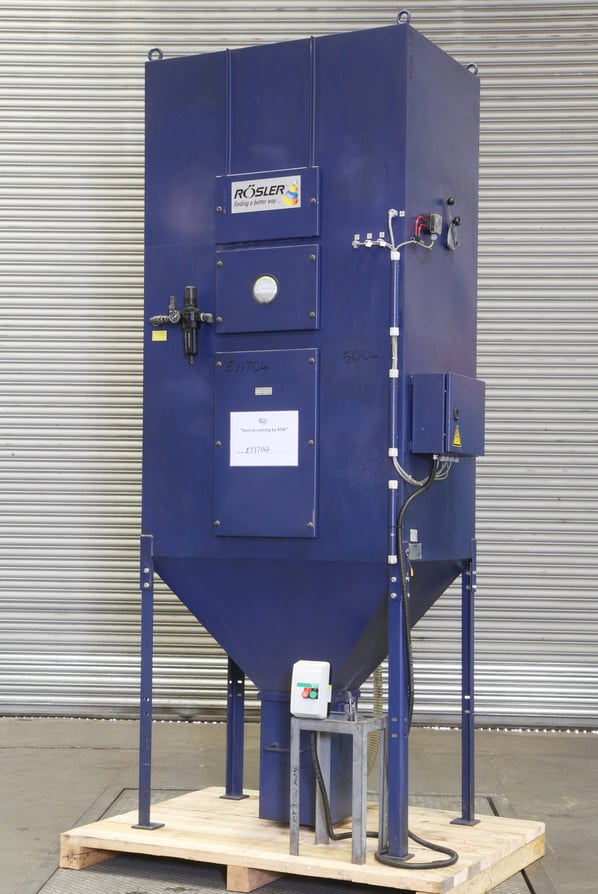

Rosler RF30 Compact Reverse Pulse Dust Extraction Unit

Stock No

EY1704

Manufacturer

Rosler

Model

RF30/3/PS

Year of Manufacture

2004

Serial

32685/04

Approx Duty CFM / M³/Hr

2000 // 3500

Filter Area ft² / m²

247 // 28

Other Info

Small footprint for confined areas.

Location

Our Central Warehouse, Aldridge, UK

Weight (kgs)

500

External Dimensions (WxDxH mm)

1340 x 1150 x 3150

Description

The Rosler RF 30/3 P/s reverse jet tubular cartridge filter was developed for continuous operation in industrial process filtration and abrasive dust collection applications

Key features

• Cartridge filter elements
• Robust weatherproof fully welded steel construction
• 4.0kW Fan
• Magnehelic filter monitor gauge

Typical dust control and process applications

• Materials handling – conveying, screening, sieving, mixing, bin/silo venting
• Shot, sand and bead blasting
• Building materials manufacture and distribution
• Dust extraction for all dry free flowing powders and granular material
• Welding and cutting processes
• Chemical, plastics and pharmaceutical powders

Print / Download Rosler RF30 Compact Reverse Pulse Dust Extraction Unit Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
