Machines & equipment for sale

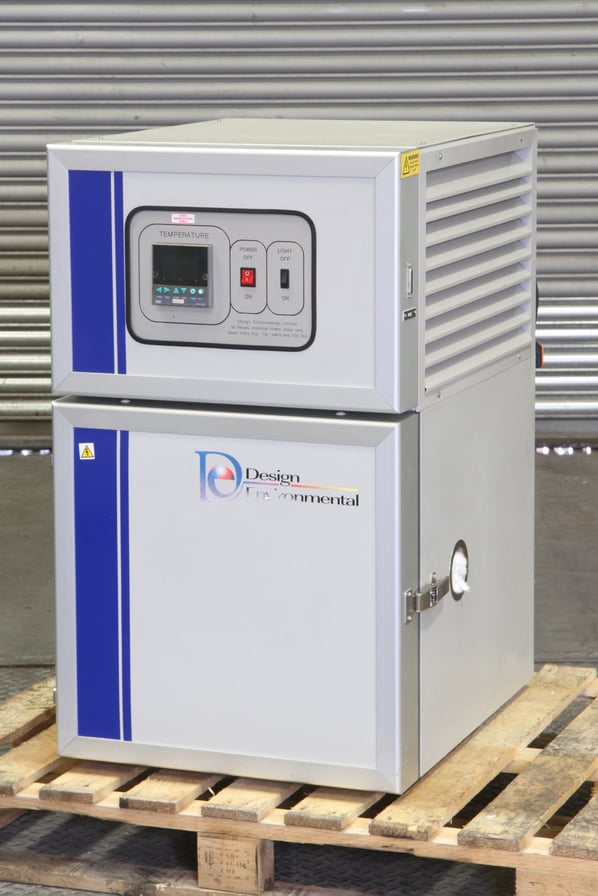

Design Environmental Temperature Cycling Oven

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
Seen working by RSW, Good Condition
Stock No
OY1991
Manufacturer
Design Environmental
Model
BS55-40
Year of Manufacture
2002
Serial
A2914
New or Used
Used (Second Hand)
Internal Size (WxDxH mm)
380 x 370 x 380
Max Temp
-40 to +130 deg
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
135
External Dimensions (WxDxH mm)
620 x 770 x 1000

Description

Design Environmental Thermal Climatic Test Chamber

When extreme temperature testing  is required, the Design Environmental Test chamber offers ultimate flexibility

Typical applications include metallurgical conditioning and extreme durability testing, automotive temperature, as well as corrosion testing and electronic PCB burn in etc.

The chamber  comprises a 55 litre stainless steel inner chamber, fully seam welded, enclosed in a mild steel outer shell. Between the two is a layer of mineral fibre and foam insulation.

A fully-hermetic air cooled refrigeration system is used to lower the temperature of the inner chamber, the refrigerant being passed through an finned evaporator coil located at the rear of the chamber behind an air baffle system.

The refrigeration plant is located in the lower compartment of the chamber and exhausts warm air to the BACK of the machine.

Heating of the chamber is effected by inconnel sheathed heater elements located behind the baffle system.

Air flow is achieved using a single motor driven fan

Technical specification for the Design Environmental Test Chamber

  • Volume litres 421
  • Single Shelf
  • Chamber Dimensions (w x d x h) 380 x 370 x 380
  • External Dimensions Width (w x d x h) 620 x 770 x 1000
  • Temperature range °C Maximum °C: -40 to +130 deg
  • Climatic Range Maximum °C ¬ + 95 ®
  • Minimum °C ¬ + 10 ®
  • Power Supply volts: 230 volts single phase
  • amps 13
  • Type ¬ free standing
  • Weight kg approx 135

This Machine can be supported for service and calibration by SJS System Service Limited, Gwent, Wales



pdf icon Print / Download Design Environmental Temperature Cycling Oven Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
