Filtex Heavy Duty Shake Dust Extraction Unit

Stock No
EY1703
Manufacturer
Filtex
Model
FX600
Year of Manufacture
2004
Serial
10079
New or Used
Used (Second Hand)
Approx Duty CFM / M³/Hr
2400 - 4800 // 4085 - 8165
Filter Area ft² / m²
600 // 55.74
Other Info
Bucket Balance
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
854
External Dimensions (WxDxH mm)
1840 x 1100 x 3170

Description

The Filtex FX 600 H is a self contained, high efficiency, envelope type unit of compact design.

The FX 600 H is a fully self contained free standing, high efficiency, dust reduction and elimination extractor complete with fully automatic electrical shaking mechanism.

This Dust abatement machine features a large dust holding hopper with rotary discharge valve allowing the collected reclaimed product to be discharged in bulk to a separate bag collector or skip for waste removal.

The body incorporates four individual full access doors with quick release fasteners for ease of inspection of the bags and fan.

Suitable for dry dust environments such as carpentry shops, general engineering, cement works, paper mills and gypsum works but to name a few.

The unit incorporates fan, motor and dual filter assemblies with mechanically operated shaking mechanism and is designed to accept combinations of fan volume/cloth area to meet the varying applications in industry.

Features Include:-

  • Full width hinged access doors, with quick release fasteners, provide easy inspection or removal of fan,motor or either filters.
  • 9.2kW high performance fan set.
  • Automatic electrical shaking mechanism control unit consists of contactors and time delay relays, so that when the stop button is operated, the fan motor is allowed to run down before the shaker motor is automatically energised. This then runs for a pre-determined period, after which the whole system is shut down and resets.

Performance chart for FX 600 H With 9.2kW fan

Course Dust Fan Rating 8165m³/h @ 1870pa

Medium Dust Fan Rating 6125m³/h @ 1870pa

Fine Dust Fan Rating 4085m³/h @ 1870pa



pdf icon Print / Download Filtex Heavy Duty Shake Dust Extraction Unit Datasheet

Additional files

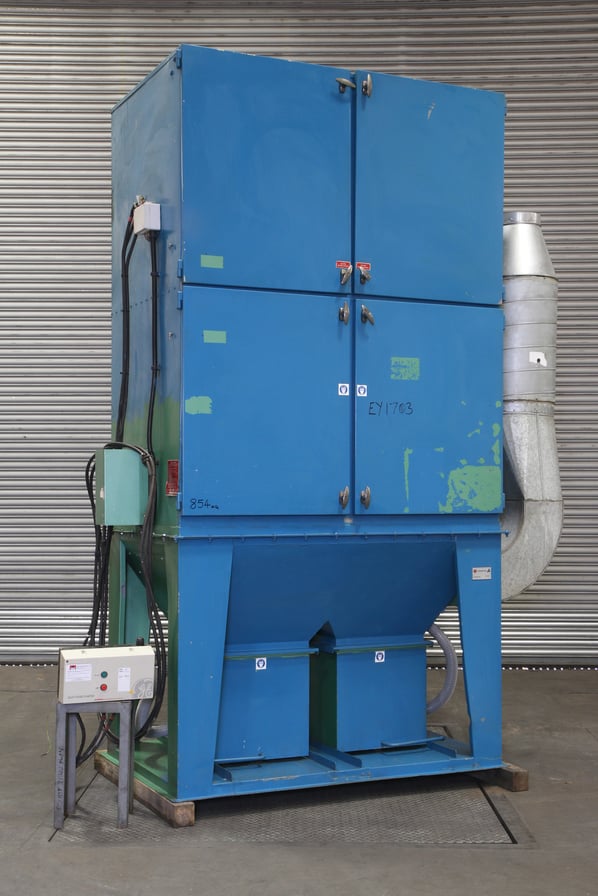

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
