Technowash Comprehensive 2 stage 160 Litre Ultrasonic Wash and Rinse

Stock No
DY1312
Manufacturer
Technowash
Model
MULTI CLEAN 160/2
Year of Manufacture
2016
Serial
51333
New or Used
Used (Second Hand)
Work Envelope (WxDxH mm)
900 x 500 x 400 - each tank
Process Stages
Ultrasonic wash + heated rinse
Other Info
High capacity filter / powered drain
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
400
External Dimensions (WxDxH mm)
2250 x 1145 x 900

Description

This second hand Technowash Multiclean Ultrasonic cleaning machine is a high precision cleaner, which is gentle, quick, safe and highly effective at cleaning a wide range of materials.

Ultrasonic cleaning has the ability to clean both the external and internal faces of a wide range of component parts.
The process is particularly advantageous for cleaning inaccessible areas such as internal tubes, screw threads, hinges and serrated edges.
The Ultrasonic cleaning method has the ability to reduce cleaning times from hours to literally minutes, and is an ideally suited cleaning method for intricate parts, and components which can't be knocked together or stand aggressive and forceful spray washing.

The machine is manufactured from 2mm grade 304 stainless steel with 1mm grade 304 stainless steel lids and has a total power consumption of 11kW and rated at 32amp supply

This Technowash Multiclean is a 2 stage ultrasonic cleaner arranged as:


Ultrasonic Cleaning

This is the progress stage whereby electrical energy is transferred to sound waves. The ultrasonic sound waves have the ability to penetrate solid mass allowing the energy to reach the points where it is normally impossible to clean, such as blind and small holes.

Ultrasonic Tank Details

  • Tank dimensions:900 x 500 x 400
  • Tank Capacity: 160 ltr
  • Heating: 4kW
  • Ultrasonic: 1500W - 28kHz
  • Weir pump: Lowara - CEA 70/3/A
  • Drain: 1"
  • Water inlet: 1/2"
  • Fully Insulated
  • Process Timer
  • High capacity solution filter

Baskets supplied with this machine are as follows

  • 2 off Baskets 800 x 440 x 240
  • 4 off Baskets 450 x 350 x 240


Rinsing Progress

Using chemicals for the ultrasonic process often leaves trace chemicals on the surface of the product giving a dull appearance. The rinse stage allows the parts to be rinsed to remove any final residue of chemical.

Rinse Tank Details:

  • Tank Dimensions: 900 x 500 x 400
  • Tank Capacity: 160ltr
  • Heating: 4kW
  • Weir Pump: Lowara - CEA 70/3/A
  • Drain: 1"
  • Water inlet: 1/2"
  • Fully Insulated
  • Circulated Rinse

All tanks have thermostatic control of temperature and low level solution alarms.





pdf icon Print / Download Technowash Comprehensive 2 stage 160 Litre Ultrasonic Wash and Rinse Datasheet

Additional files

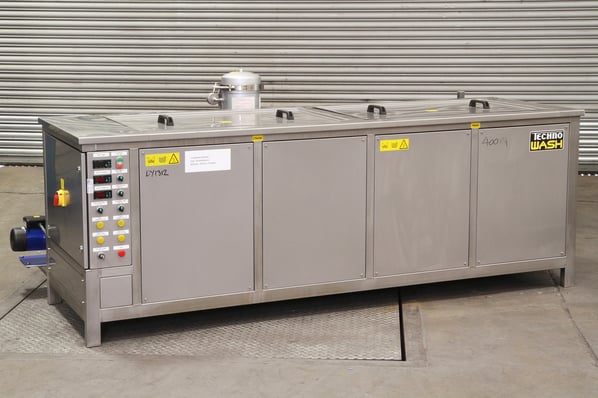

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
