Machines & equipment for sale

CMU 160/25 Press

Used / Second Hand

Price
Please call on +44 (0) 1922 45 8000
Availability:
Arriving in stock soon, available for purchase now.
Condition
From a working environment
Stock No
GRE004
Model
CMU 160/25 Press
Year of Manufacture
1999
Serial
0799565
New or Used
Used (Second Hand)
Capacity
160 Tonne
Other Info
Folding Length 2500 mm
Location
France
Weight (kgs)
15000

Description

Specifications press A
Model 160/25
Year of manufacture: 1999
Strength: 160 Tonne
Folding length:  250 mm
Distance between CNC uprights N/A
Coldecygine Vertical stroke: 200 mm
Work speed N/A
Number of axes of the rear stop N/A
Engine power N/A
Pit N/A
Dimensions (L x W x H) N/A
Weight 15000 KG
Power: 160 tons
Top dead centre (top adjustment): 625 mm
Bottom dead point: 450 mm
Sliding stroke: 175 mm (200 mm max)
Adjustment height: {related to the wedges +/- 3 mm)
Height Firm Tool: 461 mm
Table length: 2500 mm
Table width: 500 mm
Table fixing: See table sketch (table equipped with a fall evacuation mat for punching tonnage)
Table / floor height: 1100 mm
Sliding support length: 2500 mm
width slide support: 500 mm



pdf icon Print / Download CMU 160/25 Press Datasheet

Additional files

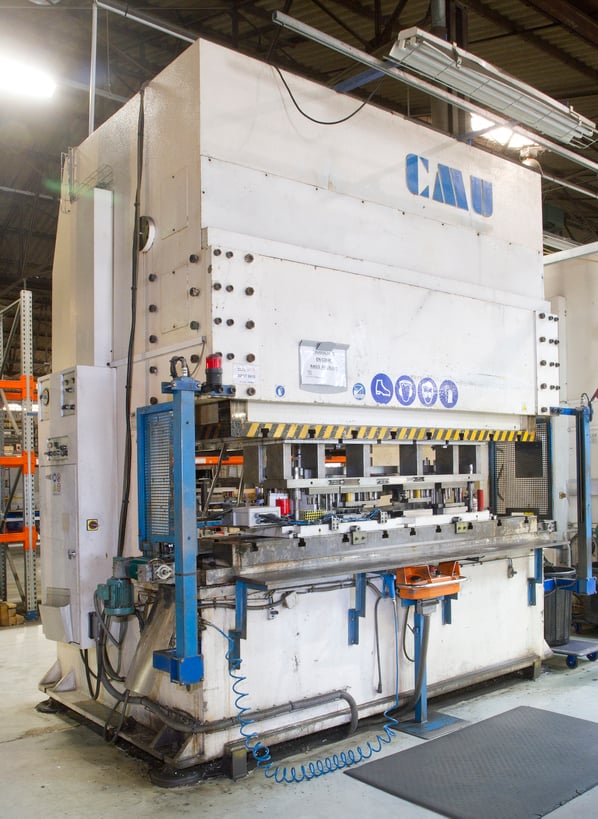

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
