Machines & equipment for sale

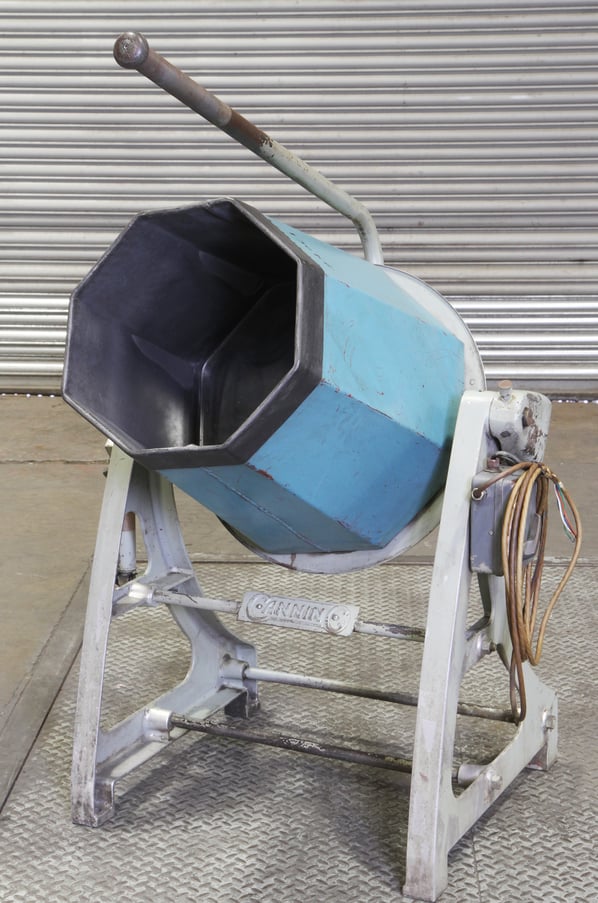

W Canning Open Ended Barrel Rumbler

Stock No
VY1183
Manufacturer
W Canning
Model
Typhon Master
Serial
183810.6
New or Used
Used (Second Hand)
Capacity
50/75 litre
Type
Tilting open ended barrelers
Other Info
Multiple mechanical surface preparation
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
130
External Dimensions (WxDxH mm)
1000 x 1300 x 1480

Description

This pre owned hand Cannings rotating barrel generate an extremely gentle finishing process with an even surface finish as either a mass finishing or mechanical plating barrel. Rotating barrels offer in many instances technically and economically optimum solutions, especially for processing of small parts in small to mid-size batches. Cannings barrels are also ideal machines for surface smoothing, polishing and even mechanical plating.

Functional principle

The machine is equipped for the Manual loading of parts and media and also for ease of unloading with a mechanical/ power assisted tilting device.

Technical characteristics

• Barrel drive: with direct drive reduction gearbox and motor through a  toothed gear drive

• Barrel: Tapered Hexagonal

• Wear protection: Barrel lined with wear and chemically resistant rubber



Specification

Voltage: 415v 3ph 50 Hz
Current: 0.7/0.4 amps
Motor Speed: 1425 (41.5) rpm
Motor Power HP 1/8

pdf icon Print / Download W Canning Open Ended Barrel Rumbler Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
