Machines & equipment for sale

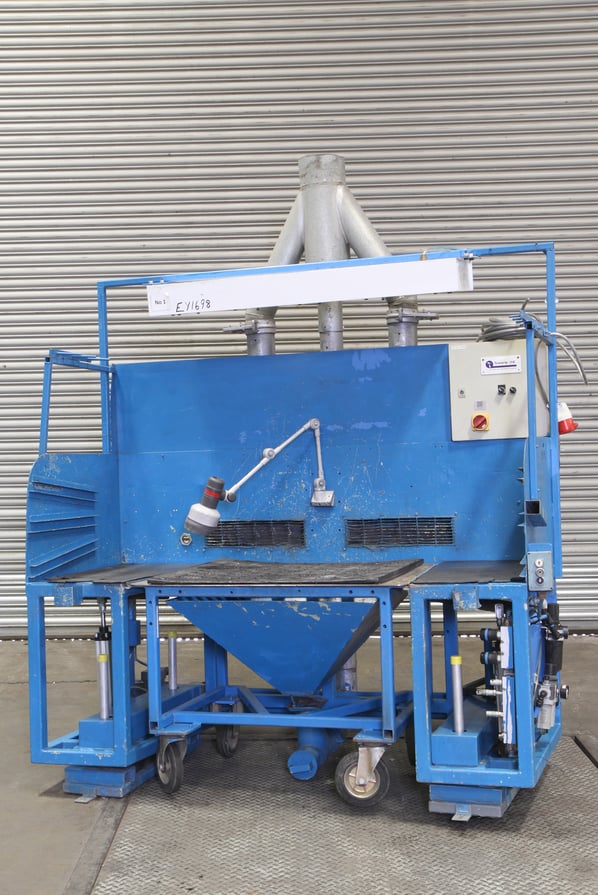

Powered variable height fettling bench with lighting

Used / Second Hand

Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition
Buy Now Add to Quote Contact Us
Stock No
EY1698
Model
Heavy duty downdraft bench
Condition
From a working environment, Good Condition
Approx Duty CFM / M³/Hr
Heavy work surface can take 250 kg load
Filter Area ft² / m²
Numerous dust capture workstation
Other Info
WORK ENVELOPE 1880 x 850
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
550
External Dimensions (WxDxH mm) [?]
1980 x 1220 x 2600

Description

This robust working table takes care of the pollutants before they reach the breathing zone.

The air and lighter dust is extracted directly in the back of the table whilst the heavier particles fall downwards through the grid in the table surface to the collection buckets below.

The duct connection for the external fan is located on top of the table and it is recommendable to use an appropriate separate filter device between the table and the fan.

These tables are fitted with both fixed and articulated lighting to ensure high quality control of the fettling process.

A comprehensive air management and electrical power supply system is also installed on the unit which allows a choice of either electrical or pneumatically powered tools to be used on the bench.

External Size: 1540mm x 1100mm x 2420mm

Work Area: 1535mm x 800mm

Duct Size: 200mm diameter working at 1m/second velocity





pdf icon Print / Download Powered variable height fettling bench with lighting Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
