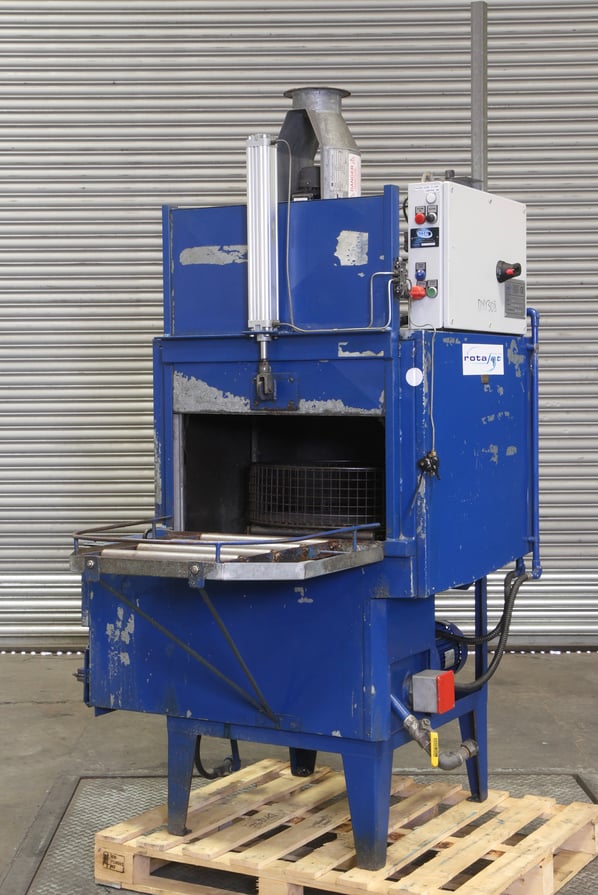

RotaJet Front Loading Heavy Duty Parts Washer

- Stock No
- DY1308
- Manufacturer
- RotaJet
- Model
- D 24
- Year of Manufacture
- 2007
- Serial
- 512-04-07
- Condition
- From a working environment, Good Condition
- Work Envelope (WxDxH mm) [?]
- Ø 600 x 380 mm
- Process Stages
- Single stage spray wash
- Other Info
- Heavy duty load/unload table
- Location
- Our Central Warehouse, Aldridge, UK
- Weight (kgs)
- 425kg
- External Dimensions (WxDxH mm) [?]
- 1250 x 1900 x 2300mm
Description
Environmentally friendly, efficient, component cleaning processes have been developed by the chemicals division of Oakliffe Rotajet to replace the hazardous and labour intensive chemical cleaning processes traditionally used in the engineering industry.
The "D" range of cleaning equipment with the right chemistry is ideal for the for the automotive, aerospace, defense and general engineering industries.
Model D24 Designed for light engineering, manufacturing, and reconditioning situations whether it be small batch, or single larger parts. Especially suitable for 'Cell' manufacturing,
Features include:
common maximum payload 90kg. evenly distributed.
One-piece spray bar with upper & lower bearings carried by centre spindle which also carries integral roller track frame.
Large optional fitted filter unit
Baskets is circular and the machines are constructed from 2mm mild steel plate.
Technical specifications:
MODEL D24
Capacity = 81 Lt
Heating = 6 kW
Pump Rating = 4kW
Pressure = 5.2 Bar
Capacity Dia.x Ht.= Ø 600 x 380 mm
Std. Basket = 90 kg
Width x Depth = 1100x1450 mm
Working Height = 600 mm
Print / Download RotaJet Front Loading Heavy Duty Parts Washer Datasheet
Additional files
Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
