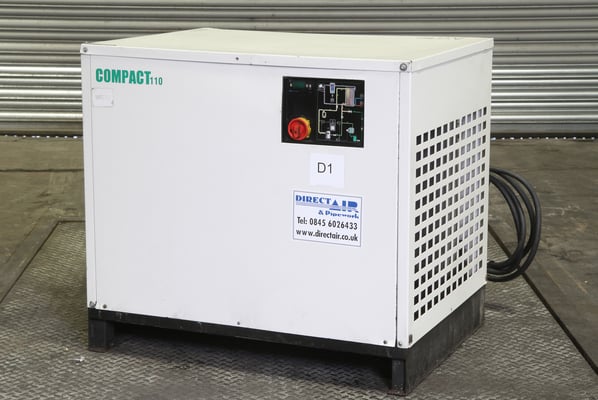

Industrial & Marine Air Center Compact 110 Compressor Air Dryer

Stock No

AY176

Manufacturer

Industrial & Marine Air Center

Model

COMPACT 110

Year of Manufacture

2005

Serial

COM110-0507/6814

New or Used

Used (Second Hand)

CFM/Kw

381cfm @ 3°

Other Info

Refrigerant R407C

Location

Our Central Warehouse, Aldridge, UK

Weight (kgs)

180kgs

External Dimensions (WxDxH mm)

1010 X 870 X 930mm

Description

Compact Series refrigeration dryers are a highly attractive choice with their highly durable, low-maintenance design. Their high-quality refrigerant circuit enables reliable performance in ambient temperatures up to +43 °C – with low material-load thanks to the high-performance thermal mass.

Standard Features

•  Powder coated removable side panels
• Air-to-air heat exchanger
• Condensate separator
• R407c refrigerant
• Control Panel
• Dew point indicator
• On/off switch
• Power on LED light
• min/max amb. temp - 0/43°C
• max inlet air temp. - 55°C
• elec. - 380-420v / 3ph / 50Hz



Print / Download Industrial & Marine Air Center Compact 110 Compressor Air Dryer Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
