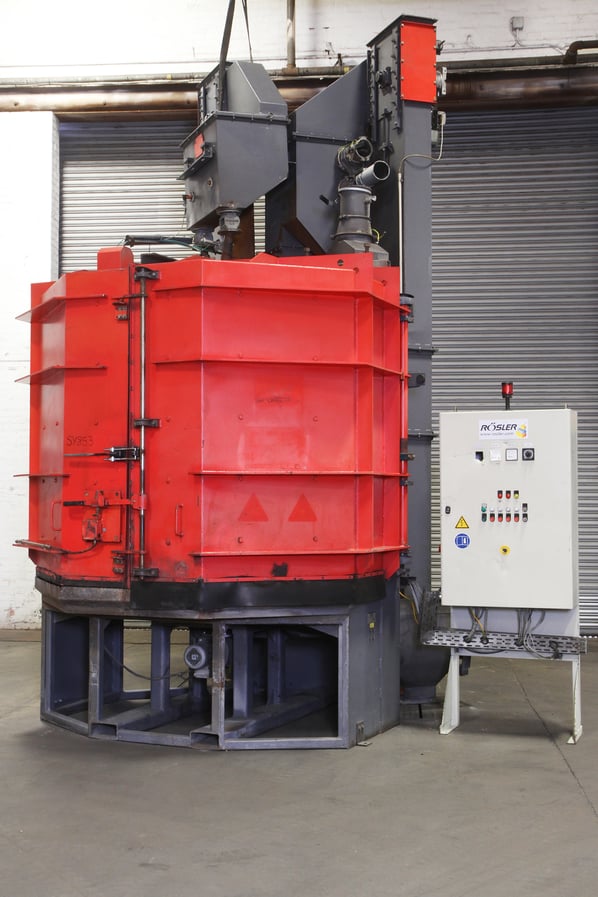

Rosler Twin wheel airless table blast machine

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Seen working by RSW, Current Model
Stock No
SY853
Manufacturer
Rosler
Model
RDT 200
Year of Manufacture
2005
Serial
35532/05
New or Used
Used (Second Hand)
Work Envelope (WxDxH mm)
2000 Ø x 800 high
Work Handling Method
Rotary table auto cycle/ manual load
Other Info
Table load capacity 2500 kg
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
4500 kg
External Dimensions (WxDxH mm)
2600 x 2780 x 5400

Description

ØROSLER ROTARY TABLE MACHINES

Different requirements for the treatment of components call for process engineering solutions that exactly meet the demand.
ROSLER rotary table shot blasting machines guarantee uniform shot blasting of the work piece surface.
The components are passed continuously through the shot blasting stream on the rotating table.

The particular attraction of this type of system is its versatility. Components of different sizes, shapes and geometries, down lo fragile components, can be handled by this design with no problem at all. Components are placed by hand or by automatic systems on the rotary table, which may be up to 2500 mm in diameter depending on the size of the installation. The rotation of the table transports the components continuously through the shot blasting stream,

Created by one or more blast wheel units, for the predetermined shot blasting cycle, and ore subjected to uni form shot blasting from above and from the sides. Optional equipment such as satellite rotary tables, manually actuated transfer trolleys, or rotating basket units, allow for optimum adaptation to the most widely varied range of components.

Construction

  • Manufactured fabrication in quality wear resistant rolled steel plate.
  • Blast chamber is lined in I0mm thick wear resistant manganese steel.

Door

  • Manually operated hinged double doors, fabricated in quality wear resistant steel plate.
  • Heavy section hinges.
  • Table centre opening to allow easy access for crane or fork lift load ing/unloading.
  • Door protected by 10mm lining of manganese steel.
  • Doors are fitted with safety limit switch and electrically activated door lock.

Work Table

  • Reinforced fabricated base with radius support/scrapper arms and peripheral rim.
  • Supports perforated wear resistant manganese steel segmented wear plates.
  • External heavy duty geared motor drive via a protected bearing unit and large diameter steel shaft.
  • Table diameter 2000 mm
  • Work height 800 mm
  • Max. table weight capacity 2500 kgs
  • Table rotation speed 4 rpm
  • Geared drive motor 1.5kW

Blast Wheel Units

  • Two off Rosier "Hurricane" Blast Wheels. (H320)
  • Each fitted with six easily changed wheel blades/vanes.
  • Direct drive flange mounted motor.
  • Power range -7. 5 kW (12 - 14 amps running)
  • Abrasive velocity - up to 80 mtrs/sec
  • Abrasive flow (total) - approx. 380 kg/min
  • Initial abrasive charge -  I000 kg


Abrasive Transport & Cleaning System

  • Abrasive and contaminants are discharged to the base of the elevator via rotary screen to remove large contaminants.
  • Bucket elevator with high wear resistant steel buckets
  • Fibreglass reinforced elevator belt.
  • Upper and lower pulleys with belt tensioning assembly.
  • Elevator motor  - 1.5kW

Abrasive Air Wash Separator

  • Sectioned air flow separator unit.
  • Adjustable media gate to provide a uniform media curtain and control media flow.
  • Efficient separations of media from fines/contaminants
  • Adjustable air velocity/volume control slide dampers.

Abrasive Storage Hopper

  • Located below air wash separator.
  • Removable screen to trap coarse particles.
  • Pneumatic control abrasive feed valves
  • Abrasive level control indicator.
  • 0.55m3 hopper capacity.

Rosler Electrical Control Panel

  • For full sequential control.
  • Process timer.
  • Hour run meter.
  • Blast wheel ammeters.
  • Visual alarm indicator.
  • Emergency stop.

Machine Dimensions

  • Width (doors closed) - 2600 mm
  • Length -  2780 mm
  • Height - 5400 mm
  • Table diameter  -   2000 mm
  • Max. weight -  4500 kg













pdf icon Print / Download Rosler Twin wheel airless table blast machine Datasheet

Additional files

Technical Data

General Arrangement

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
