Machines & equipment for sale

Guyson Marr Top Loading Spray Wash

Special Offer

Refurbished Price [?]
£ 4,450 (+ VAT)
Special Price (refurbished) [?]
£ 3,950 (+ VAT)
Special Price (sold as seen) [?]
£ 2,500 (+ VAT). Available for immediate collection.
Special offer ends
23 August 2019 17:00 GMT while stocks last
Condition
Good Condition, Current Model
Stock No
DY1304
Manufacturer
Guyson Marr
Model
Orbit 600
Year of Manufacture
2000
Serial
802538
Work Envelope (WxDxH mm)
Basket 620 dia
Process Stages
1
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
242
External Dimensions (WxDxH mm)
1400w x 1300d x 1700

Description

The Orbit washer is an industrial quality, water based cleaning machine built for tough cleaning needs. Efficiency and long life are guaranteed from the heavy gauge 304 stainless steel construction with 25mm thick energy efficient thermal cladding around the tank and a double skinned lid providing high quality insulation and lower energy costs.

Rapid cleaning of all component surfaces with safe detergents is assured by rotating components in the motor driven basket in front of V-pattern spray jets, orientated from three sides towards the components. The hot wash solution is driven by a high pressure stainless steel 4bar pump through stainless steel pipework.A constant basket rotation of 5 revolutions per minute and the use of all the available spray pressure for cleaning and not diverting part of it into rotating the basket enables high wash solution flow rates to impact on the components and deliver superior cleaning.

The compact machine footprint and ease of operation for high quality cleaning provides a winning combination. Basket size 600mm dia x 100mm high(300mm clear under the boom). Electric solution heating, process timer, and solution filter strainer.

 Features include:

  • Wash strainer
  • Solution filtration
  • Electric heating
  • low level protection
  • Auto water makeup
  • process timer
  • Oil skimmer
  • Inline filter

 Overall dimensions 1400w x 1300d x 1700mm high

415Volt 3ph

F.L.A 14.6

pdf icon Print / Download Guyson Marr Top Loading Spray Wash Datasheet

Additional files

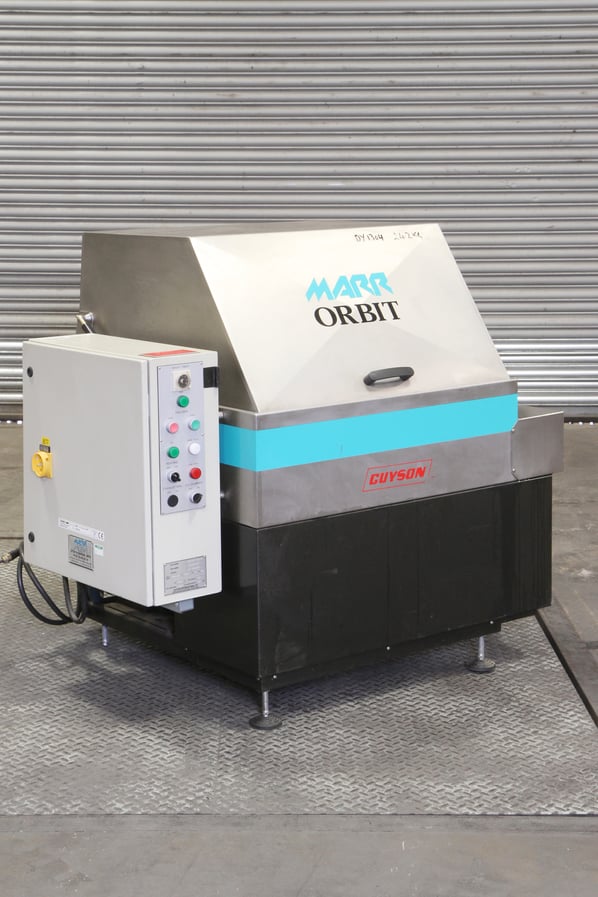

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
