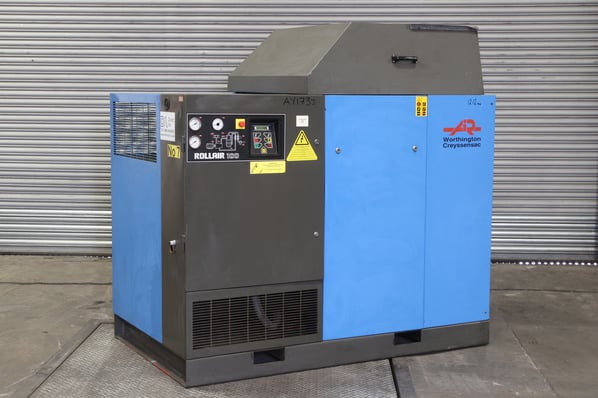

Worthington Creyssensac Rollair Traditional Oil Fed Twin Screw Compressor

Stock No

AY173J

Manufacturer

Worthington Creyssensac

Model

RLR100AS AIR40

Year of Manufacture

1997

Serial

417713

CFM/Kw

449//75 kW

Compressor Type

Oil Cooled, Single Stage Screw

Other Info

Small footprint

Location

Our Central Warehouse, Aldridge, UK

Weight (kgs)

1430

External Dimensions (WxDxH mm) [?]

1950 x 1200 x 1900

Description

The Rollair RLR 100AS Air compressor has a footprint less than 2.4 m², it combines all the elements of a state of the art air compressor including high efficiency oil injected screw design

Features and benefits.

Low Noise level
High quality components and soundproofing materials are utilised to reduce noise level to an absolute minimum, a major concern in today's industry.

Optimum air flow
The vertically mounting of a turbine cooling fan in the ROLLAIR® range offers many benefits compared to a traditional axial fan:

• Low rotational speed insures efficient, reliable and quiet cooling.
• Mounting the fan above the primary source of heat, the drive motor, ensures optimum cooling.
• Combined with the pyramidal air inlet baffle, it is possible to fit the ROLLAIR® against a wall to further enhance noise reduction, maximise the utilisation of space and inhibit dust into the air intake.

Direct coupling: Improved efficiency and limited maintenance
Compression elements are manufactured according to stringent geometrical clearances and close tolerances giving high efficiency and reducing energy consumption.

IP55 motor
Complies with EFF1 standards. Robustness, protection against atmospheric pollution and efficient cooling are the main features that give the motor high efficiency and extended life expectancy.

Direct transmission
The direct drive set up contributes to lower energy requirements: none of the losses or regular checks associated with belt transmissions is required. The housing ensures a perfect alignment, whilst a flexible coupling avoids stress on the motor.

Specifications:

Noise Level 70 dB(A)

Length 1950 mm

Width 1200 mm

Height 1900 mm

Delivery
m3/h (bar) 12.5(7.5),
cfm (bar) 449(7.5),

Power
KW 75
HP 100

Weight 1430 kg



Print / Download Worthington Creyssensac Rollair Traditional Oil Fed Twin Screw Compressor Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
