Machines & equipment for sale

Teijo 800 Basket Wash

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Stock No
DY1300
Manufacturer
Teijo
Model
C-800 KD
Serial
35449 / 53449
New or Used
Used (Second Hand)
Work Envelope (WxDxH mm)
Ø700 x 570
Process Stages
1
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
428
External Dimensions (WxDxH mm)
1280 x 1250 (1800 / door open) x 1680

Description

Environmentally friendly, efficient, component cleaning processes have been developed by Teijo to replace the hazardous and labour intensive chemical cleaning processes traditionally used in the engineering industry.

The C-800 range of cleaning equipment with the right chemistry is ideal for the for the automotive, aerospace, defense and general engineering industries.

Model C-800 Designed for light engineering, manufacturing, and reconditioning situations whether it be small batch, or single larger parts. Especially suitable for 'Cell' manufacturing,

Features include:

Common maximum payload 200kg. evenly distributed.
One-piece spray bar with upper & lower bearings carried by centre spindle which also carries integral roller track frame.
Basket is circular and the machine is constructed from 2mm mild steel plate.

Technical specifications:

MODEL D24

Capacity = 350 Lt
Heating = 9 kW
Pump Rating = 4kW
Pressure = 5.2 Bar
Capacity Dia.x Ht.= Ø 700 x 570 mm
Std. Basket load = 200 kg
Working Height = 570 mm

External Size: 1280 x 1250 x 1680 mm

pdf icon Print / Download Teijo 800 Basket Wash Datasheet

Additional files

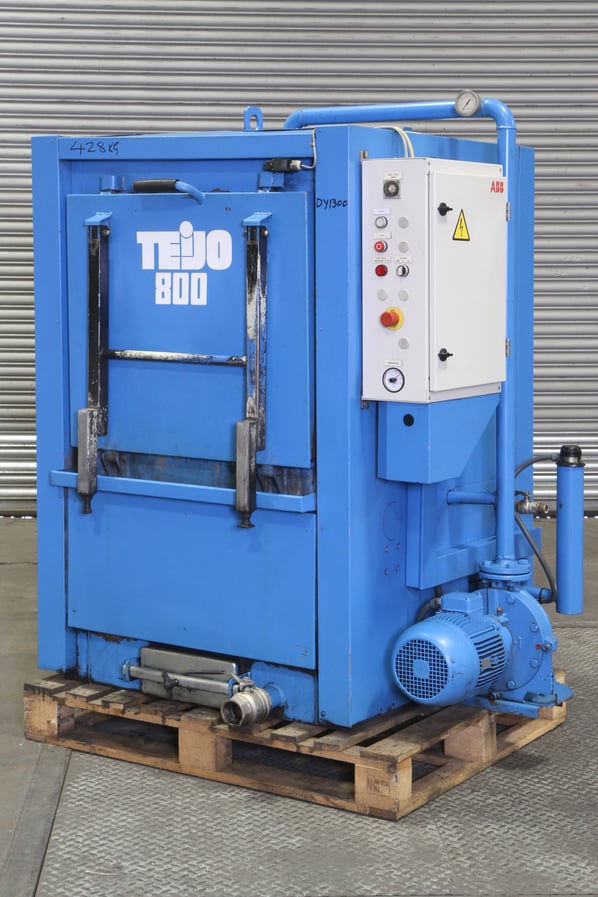

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
