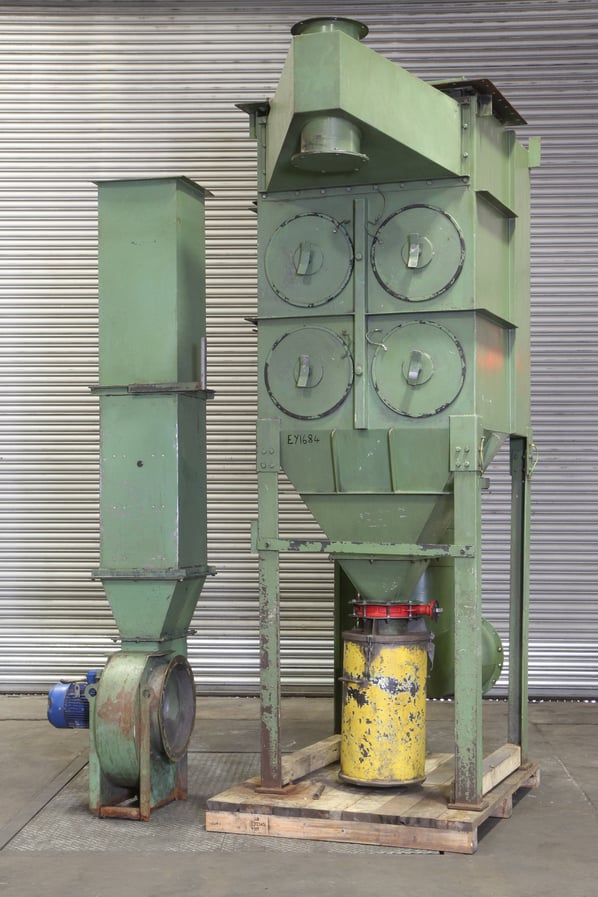

Donaldson Torit (DCE) Reverse Pulse Jet Cleaning Dust Extractor

- Stock No
- EY1684
- Manufacturer
- Donaldson Torit (DCE)
- Model
- 2DF-4-P
- Year of Manufacture
- 1995
- Serial
- 960703
- Approx Duty CFM / M³/Hr
- 2000//3398
- Filter Area ft² / m²
- 403 // 37.5
- Location
- Our Central Warehouse, Aldridge, UK
- External Dimensions (WxDxH mm) [?]
- 1220 x 2340 x 3370 dims without fan
Description
Donaldson 2DF-4-P Reverse Jet Cleaning Dust Extractor
The reverse pulse system of the DF range maintains the optimum filter efficiency by automatically back washing the filter elements with a 90 psi high pressure jet of compressed air removing the contaminants and depositing them quickly into the waste collection bucket below.
Key Benefits:
• Easy to use. Quick-release covers provide easy removal and faster filter cartridge access.
• Compact. Smaller footprints for applications that require maximum cleaning efficiency in even smaller spaces.
• Powerful. DF collectors provide 25 % more capacity than same-sized dust collectors.
• Cost effective. The Donaldson proprietary ExtraLife Filter Cleaning System averages up to 30 % increase in
pulse cleaning energy for unmatched cleaning ability.
• Innovative unique Ultra-Web® cartridge filters provide the longest filter life and highest filtration efficiency –
which lowers total costs of operation.
• Completely self-contained, “plug-and-play” unit
• Remarkably quiet operation
• Easily transportable
• Currently complete with an 3.7 kW Fan set
A wide range of filter media's are available from the Ultra-web range of cartridges allowing the DF range to be
tailored to meet the exact needs of the nuisance dusts to be extracted.
Easy Maintenance. With the design of the DF’s quick access covers, filter removal and maintenance is
extremely fast with one operation.
Print / Download Donaldson Torit (DCE) Reverse Pulse Jet Cleaning Dust Extractor Datasheet
Additional files
Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
