Donaldson Torit (DCE) Reinforced Heavy Duty Reverse Pulse Cartridge Filter

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
Seen working by RSW
Stock No
EY1683
Manufacturer
Donaldson Torit (DCE)
Model
2DF-4-R
Year of Manufacture
1998
Serial
98070955
New or Used
Used (Second Hand)
Approx Duty CFM / M³/Hr
2000 // 3398
Filter Area ft² / m²
403 // 37.5
Other Info
Explosion relief panel & inlet plenum
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm)
1220 x 2340 x 3370 dims without fan

Description

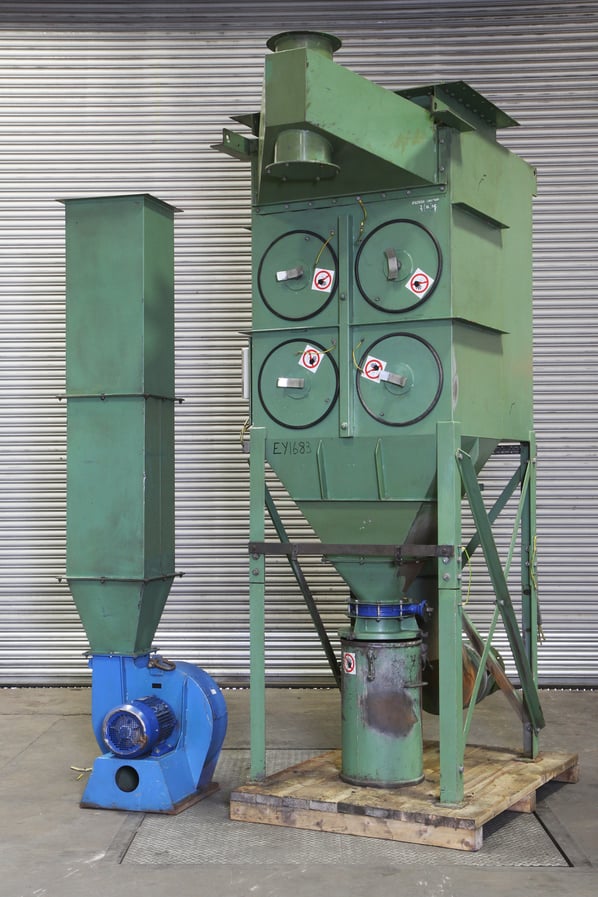

Donaldson 2DF-4-P Reverse Jet Cleaning Dust Extractor

The reverse pulse system of the DF range maintains the optimum filter efficiency by automatically back washing the filter elements with a 90 psi high pressure jet of compressed air removing the contaminants and depositing them quickly into the waste collection bucket below.

Key Benefits:

• Easy to use. Quick-release covers provide easy removal and faster filter cartridge access.
• Compact. Smaller footprints for applications that require maximum cleaning efficiency in even smaller spaces.
• Powerful. DF collectors provide 25 % more capacity than same-sized dust collectors.
• Cost effective. The Donaldson proprietary ExtraLife Filter Cleaning System averages up to 30 % increase in
pulse cleaning energy for unmatched cleaning ability.
• Innovative unique Ultra-Web® cartridge filters provide the longest filter life and highest filtration efficiency –
which lowers total costs of operation.
• Completely self-contained, “plug-and-play” unit
• Remarkably quiet operation
• Easily transportable
• Currently complete with an 3.7 kW Fan set

A wide range of filter media's are available from the Ultra-web range of cartridges allowing the DF range to be
tailored to meet the exact needs of the nuisance dusts to be extracted.

Easy Maintenance. With the design of the DF’s quick access covers, filter removal and maintenance is
extremely fast with one operation.

Specification:

  • Capacity: 2,000 cubic feet minute
  • Holds (4) cartridge filters
  • Discharge height: 47 inches
  • Total filter media area: 403 square feet
  • Automatic pulse clean system with differential pressure gauge
  • Sequencing timer board in enclosure
  • Single hopper outlet with sealing drum cover kit
  • 5 horsepower motor

pdf icon Print / Download Donaldson Torit (DCE) Reinforced Heavy Duty Reverse Pulse Cartridge Filter Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
