Machines & equipment for sale

SNOL Industrial batch oven

Special Offer

Full Price [?]
£ 9,890 (+ VAT)
Special Price (Brand New)
£ 8,890 (+ VAT)
Special offer ends
31 October 2019 17:00 GMT while stocks last
Brand New, Unused, Current Model
Stock No
Year of Manufacture
Internal Size (WxDxH mm)
950 x 950 x 1200
Max Temp
Other Info
Supplied with 2 removable shelves
Our Central Warehouse, Aldridge, UK
Weight (kgs)
572 kg
External Dimensions (WxDxH mm)
1600 x 1700 x 1725


From our range of SNOL large general purpose industrial low temperature batch ovens

SNOL is one of the leading industrial oven manufacturers in the world. The company is based in Lithuania with subsidiaries in Russia, Belarus and Ukraine and with oven and furnace distribution companies throughout Europe.

SNOL and Riley Surface World is a unique partnership. It combines Europe’s finest industrial and laboratory oven manufacturer with a UK company renowned for its high levels of industry knowledge, service and technical support.

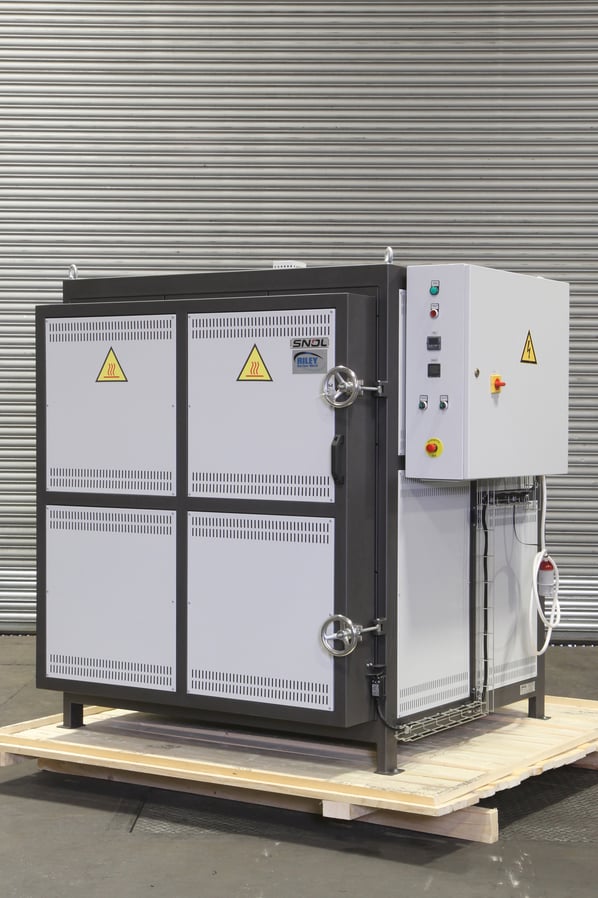

The 970/300 Model is an industrial 970ltr 300°C temperature range batch oven


The industrial batch oven is ideal for thermal processing, drying, where tighter temperature tolerances or quicker heat-up times are required. In addition to finishing applications the industrial batch oven can be used for the following applications:

  • Adhesive curing
  • Baking
  • Bonding
  • Drying
  • Epoxy curing
  • Metal finishing
  • Preheating
  • Varnish curing
  • Wet paint curing

Standard Features

The industrial batch oven is manufactured with all the same quality features as SNOL's other larger and higher temperature batch ovens and is competitively priced with quick delivery times.

  • 300°C maximum temperature rating
  • High volume airflow for excellent uniformity & heating rates
  • Excellent performance and reliability (Steady state without charge ± 2°C with charge ±5°C)
  • Adjustable pattern return air ductwork for consistent heat distribution
  • Combination airflow through the work chamber
  • Rear mounted recirculation fan
  • Installed heating power 12kW  3 phase + Neutral from mineral insulated metal sheathed elements
  • Fresh air and exhaust vents
  • Micro processor Omron E5CC Programable Temperature controller and SSR heating power control
  • Heavy duty adjustable door hinges
  • The external construction is clad in mild steel sections, with a powder coated exterior
  • Twin shelves supplied with 5 shelf runners
  • Guaranteed temperature uniformity
  • Door limit switch to shut heat off when door opens to protect the operator

Available Options

  • Digital process timer with auto-shutdown feature
  • Programmable controller to store multiple recipes with multiple ramp/soak segments
  • Temperature recorder or data logger

Combination horizontal Airflow Benefits

As a standard, industrial batch ovens are designed to provide a combination horizontal air flow pattern through the work chamber. These include fully adjustable return vents to ensure even airflow distribution throughout the work chamber. With combination air flow, the return ducts located on both side walls (running from the very front to the very back of the work chamber) This allows uniformity to be maintained whatever the combination and shape of the work placed within it. The air is then returned to the heating plenum through a return duct located behind the work chamber where it is reheated and returned to the chamber.

Fully factory assembled and tested

The equipment is, fully factory tested and adjusted prior to shipment from our facility. All safety interlocks are checked for proper operation and the equipment is operated at its maximum operating temperature for a test period. If a temperature uniformity profile test and certification is purchased, the profile test will be performed and documented prior to shipment.

Customers are invited and encouraged to visit our site to witness testing and sign off the equipment prior to shipment. During this visit, personnel are available to demonstrate, and answer any questions you may have concerning design, operation, and maintenance.

Technical specifications:

Temperature range max  300ºC

Chamber dimensions, mm W 950 x D 950 x H 1200

Chamber Material St. steel

Volume L 970

External dimensions, mm W 1600 x D 1700 x H 1725

Electrical specifications

Power kW 12

Voltage V 400

Weight kg 572

pdf icon Print / Download SNOL Industrial batch oven Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
