Baugh & Weedon Ltd Magnetic Particle Inspection (MPI) Bench

Special Offer

Refurbished Price [?]
£ 7,850 (+ VAT)
Special Price (refurbished) [?]
£ 6,950 (+ VAT)
Special Price (sold as seen) [?]
£ 2,000 (+ VAT). Available for immediate collection.
Special offer ends
23 August 2019 17:00 GMT while stocks last
Condition
From a working environment, Good Condition
Stock No
MY610
Manufacturer
Baugh & Weedon Ltd
Model
Universal 50w-AOT
Year of Manufacture
Refurb '02
Serial
797902
Process Application
None destructive testing of components
Other Info
415v / 3 phase 18 kW
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm)
1360 x 700 x 1150

Description

Tiede Gmbh Magnetic Particle non-destructive test machine

Manufactured by Tiede, a leading manufacturer of test machines, the 'W' series is fitted with two magnetizing circuits as standard, enabling the work piece to be checked for cracks in both longitudinal and traverse directions in one operation.

The longitudinal direction is checked by by means of an AC flux current. When checking  the transverse direction the series W is checked by a AC yoke.

This model is supplied with a fast loading device for the work piece. With this pre-adjustment for the work piece length is made by a simple hand wheel. Well planned setting up and operating devices make it possible to use the equipment easily and simple according to current ergonomic practice.

 Specification:

  • Bench has head and flux. The head is AC only and the flux is AC and HWDC
  • Minimum current head: 150 amps peak
  • Maxumim current head: 3,000 amps peak
  • AC flux minimum: 760 amp-turns peak
  • AC flux maximum 15,600 amps-turns peak
  • HWDC flux minimum: 760 amps-turns
  • Maximum 18500 amps -turns
  • Shot times: 1,2 and 3 seconds

The machine was originally manufactured by Baugh and Weedon Ltd, based in the UK and are able to support this machine with test, calibration and operation services.

pdf icon Print / Download Baugh & Weedon Ltd Magnetic Particle Inspection (MPI) Bench Datasheet

Additional files

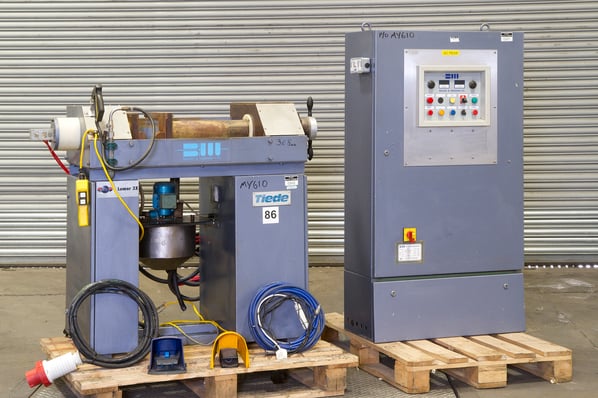

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
