Machines & equipment for sale

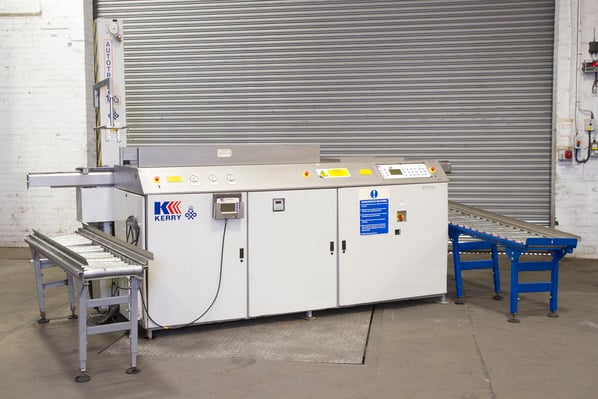

Kerry ( Guyson International ) CD450 with Mk3 Transporter

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
Good Condition
Stock No
DY1296
Manufacturer
Kerry ( Guyson International )
Model
CD450
Year of Manufacture
1996
Serial
57211/1-7-96
New or Used
Used (Second Hand)
Work Envelope (WxDxH mm)
300 x 440 x 415
Process Stages
4
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
1026 kg
External Dimensions (WxDxH mm)
4225 x 1250 x 2670

Description

Stages of the unit are as follows:

Stage 1

- Heated Sparge under immersion clean, with heating provided by thermostatically controlled heaters mounted on the tank base.
- Integral lip fume extraction
- Mechanical carrier agitation
- Side wall mounted ultrasonics
- Low level float switch relaying low level warning message to control panel
- The sparge under immersion is evenly distributed across the rear of the process tank, with pumping action provided by a CHi 4-40 pump supplying the agitation via the filtration circuit consisting of a coarse pot type pre filter, removable cartridge type fine filter

Stage 2

- Heated Sparge under immersion rinse, with heating provided by thermostatically controlled heaters mounted on the tank base.
- Integral lip fume extraction
- Mechanical carrier agitation
- Low level float switch relaying low level warning message to control panel
- The spray under immersion is evenly distributed across the rear of the process tank, with pumping action provided by a CHi 4-40 pump supplying the agitation via the filtration circuit consisting of a coarse pot type pre filter, removable cartridge type fine filter

Stage 3

- Heated spray under immersion DI water rinse tank
- Similar operation to tank 2, but using DI water
- UV sterilisation unit
- Includes LTH DCD 23 digital conductivity meter enabling monitoring of the DI water quality

Stage 4

- Twin hot Air Dryer
- Dual chamber tank fitted with pneumatic sliding lids. Air is drawn from the base of the tank and is passed over heating elements before being recirculated back through slots fitted in the front of the tank wall.

Autotrans Mark 3 Includes full PLC control, accessible via the control pendant enabling the programming of up to 10 separate programs for differing cleaning requirements.





pdf icon Print / Download Kerry ( Guyson International ) CD450 with Mk3 Transporter Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
