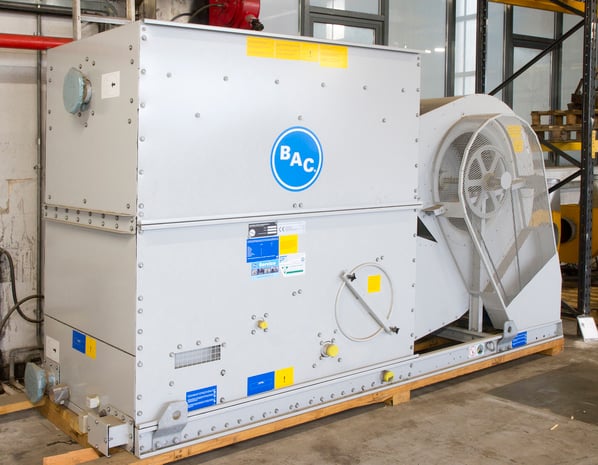

Baltimore Aircoil Company Bac VTL-E 059-H Cooling Tower

Direct From Site Clearance

Direct Site Clearance Price [?]
£ 6,800 (+ VAT)
Part of a Direct Site Clearance
Baltimore Cooling Tower
Condition
From a working environment, Excellent Condition, Unused, Current Model
Location
Birmingham, UK
Stock No
CY578J
Manufacturer
Baltimore Aircoil Company
Model
Bac VTL-E 059-H
Year of Manufacture
2016
Serial
H170302101
New or Used
Used (Second Hand)
Ave. cooling capacity
497
Ave. Water Flow Rate
6.4L/S
Other Info
Fleck 9000 SXT Water Softenener Included
Location
Birmingham, UK
Weight (kgs)
1290 kg
External Dimensions (WxDxH mm)
1250 x 2250 x 1990

Description

Unused, never installed, never commissioned, never run.

BAC model VTL-E 059-H open circuit cooling tower rated at 497 kW

Key benefits

  • Low height
  • Easy installation
  • Quiet

VTL-E characteristics - Counter flow, centrifugal fan, forced draft

Water distribution - Pressurized

Maximum entering water temperature

  • 55°C standard fill
  • 65°C with alternative fill

Typical applications

  • Small to medium HVAC and industrial applications Installations with extremely low height requirements Indoor installations
  • High temperature industrial applications
  • Tight enclosures & installations requiring a single air inlet

Low Height

Very low height: fits perfectly on roof tops or tight enclosures.

Easy installation

VTL-E towers are factory-assembled. We ship in one piece for easy on-site lifting and installation. VTL-E offers high capacity and minimum operating weight. Save on steel supports, both underneath the equipment and in the building itself for rooftop installations.
Single-side air inlet lets you install next to solid walls.
Units housable indoors thanks to centrifugal fans allowing intake or discharge ductwork.

Ideal for a quiet operation

VTL-E units include quiet internal centrifugal fans for minimal surrounding noise. Single-side air inlet, and a quieter tower rear for more noise-sensitive areas.
Cut operation noise still further with factory-designed and tested sound attenuators or silencers.

Year-round reliable operation

Various corrosion-resistant materials, including the unique Baltibond hybrid coating for guaranteed long service life.
Optional Baltiguard Drive System for energy savings and less noise during low load (night). A perfect stand-by system in case of motor failure.
The thermal performance of VTL-E is Eurovent certified.

Easy to maintain

Easy access to all the mechanicals, including fan shaft bearings.
BACount individual bundled fill sheets for easy and complete inspection or cleaning preventing full replacement of fill bundles.

Principle of operation


Warm process water  from the heat source enters the spray system at the top of the cooling tower where it is distributed over the fill or heat transfer media.
At the same time the centrifugal fan blows ambient air upwards through the tower. While the warm process water contacts the cold air the latter heats up and part of the process water is evaporated which removes the heat from the remaining water.
The tower sump or basin collects the cooled water  after which it returns to the heat source of the process.
The warm saturated air leaves the tower through the drift eliminators , which remove water droplets from the air.

Material Options

Heavy-gauge hot-dip galvanized steel is used for external unit steel panels and structural elements featuring Baltiplus Corrosion Protection.
The unique Baltibond hybrid coating is an optional extra. A hybrid polymer coating for longer service life, applied pre-assembly to all hot- dip galvanized steel components of the unit.
Optional stainless steel panels and structural elements of type 304 or 316 for extreme applications.
Or the economical alternative: a water-contact stainless steel cold water basin. Its key components and the basin itself are stainless steel. The rest is protected with the Baltibond hybrid coating.

Heat transfer media

Our heat transfer media is patented BACount fill. Its thermal performance is proven during comprehensive lab thermal performance tests, and it offers you unrivalled system efficiency. We divide the fill pack into compact fill bundles easier to remove and replace. Each includes individual fill sheets which are easy to dismantle for thorough inspection and cleaning, hence eliminating the need for frequent fill replacement.
In self-extinguishing plastic, which will not rot, decay or decompose.
For operation above 55°C, try our optional high temperature fill, usable with intake water up to 65°C.

Air movement system

With motor-driven centrifugal fan and a V-belt drive. You can easily remove the entire mo t o r base for proper belt tensioning to ensure constantly correct belt alignment. Together with the heavy duty fan shaft bearings this guarantees optimal operational efficiency. Single- and multi-speed motors available.
Centrifugal fan(s) are forward-curved and nearly noiseless. Overcome external static pressure! Use sound attenuators and duct work etc. for air intake/discharge with no loss of thermal performance! Our drift eliminators come in UV-resistant plastic, which will not rot, decay or decompose and their performance is tested and certified by Eurovent. They are assembled in easily handled and removable sections, for optimal internal access.
Steel eliminators, protected with the unique Baltibond hybrid coating, for optimal corrosion protection, are also available for specific applications.

Water distribution system

These consist of:

A header and spray branches with wide non-clog plastic
nozzles, secured by rubber grommets. You can easily remove, clean and flush both nozzles and spray branches.

A cold water basin with:
- strainers which are easy to lift out and the anti-vortexing device also helps stop trapped air
- mechanical make up
- circular access door
