Machines & equipment for sale

Thorne Industry Standard Non Flam Wet Collector

Stock No
EY1681
Manufacturer
Thorne
Model
Non Flam W80
New or Used
Used (Second Hand)
Approx Duty CFM / M³/Hr
1750//3000
Filter Area ft² / m²
N/A
Other Info
2.2 kW motor(3 hp) centrifugal fan motor
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
415 kg
External Dimensions (WxDxH mm)
835 x 1090 x 2120

Description

These Second hand Carter Environmental Thorn W80 NonFlam 2.2kW wet type dust control plant. Constructed from a carbon steel body with steel internal baffles.

The unit is a self contained wet dust scrubber that generates a self induced solid water curtain that entraps and washes the dirty air removing any contaminates as it passes through .

A second stage eliminator (optional) then removes any water droplets that are carried over before allowing the cleaned air to be discharged back into the area.

Configured with an extended hopper silo for stored waste?

Typical applications include any dust laden air-stream that may carry sparks such as from grinding and fettling operations, Wet and sticky dusts and where the type of dusts may be governed under the ATEX regulations whereby explosive dust are generated with such operations or processes as shot blasting and machining of aluminium or any white metal components.

Including a self contained silencer, advanced water make up box with bal valve level control, and fan starter.

Inlet Ø250mm dia.
Approx.duty 1750cfm.

includes transition pieces and ductwork.

pdf icon Print / Download Thorne Industry Standard Non Flam Wet Collector Datasheet

Additional files

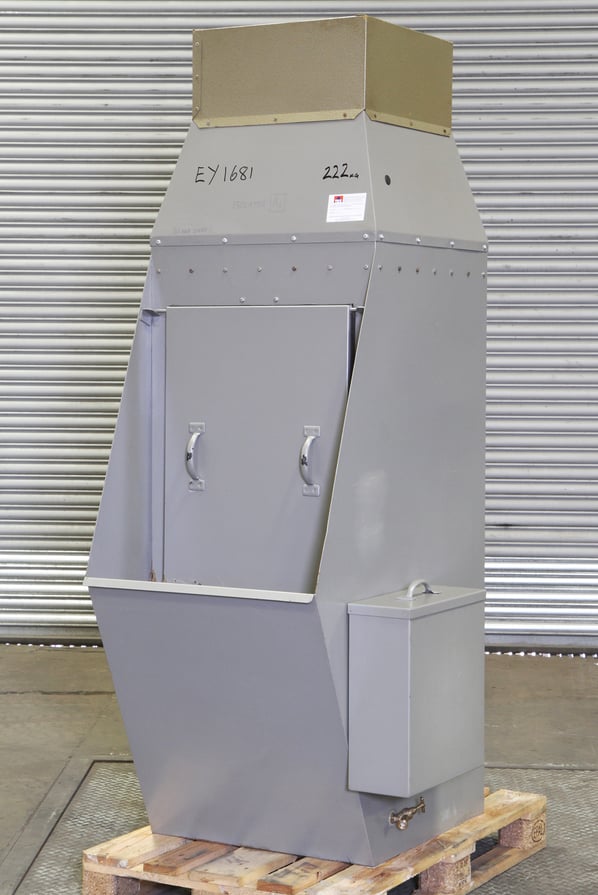

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
