Machines & equipment for sale

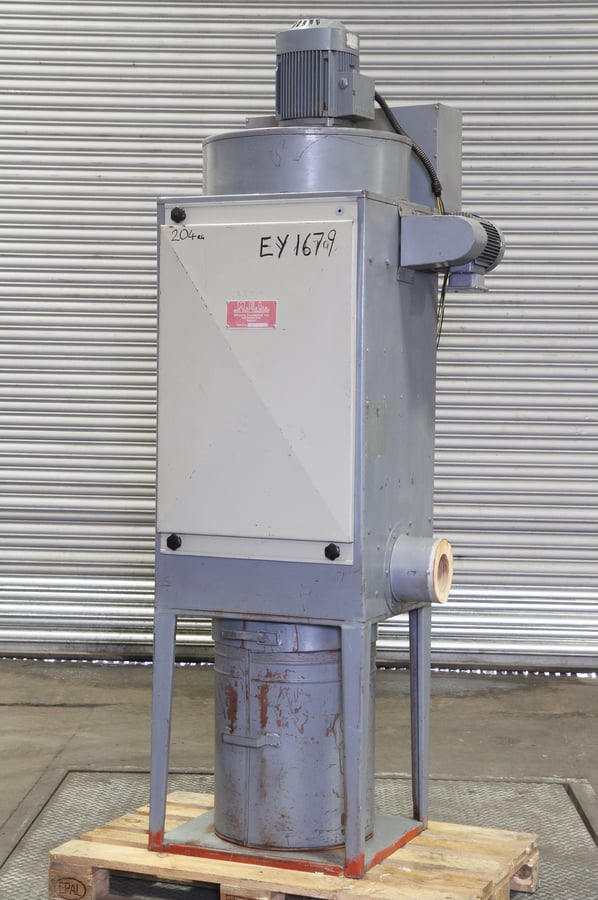

McCluckie Dust Extractor

Stock No
EY1679
Model
MEL
Serial
54-5-744
New or Used
Used (Second Hand)
Approx Duty CFM / M³/Hr
750 // 1274
Filter Area ft² / m²
100//10
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
204 kg
External Dimensions (WxDxH mm)
880 x 820 x 2350

Description

A second hand  dust extraction unit designed to stand alongside a very wide range of dust generating machinery and processes.

The dust extractor is a compact, self contained fabric filter dust control unit complete with 5.5 kW fan, self cleaning mechanism, easy-access filter assembly, & a 3ft³ waste container bucket with quick-release sealer gear and weather cowl making it suitable for outdoor siting.


Design features

• Compact Design
Minimises floor space and fits in virtually any plant layout.
•Versatility
To suit a variety of dust collection applications
•Quiet & Efficient Operation
Motors and fan are enclosed in collector housing to minimise noise.
•3ft³ collection bucket
•Si
Reduces noise levels in the environment.
•Quick-Release Lever
Allows for easy removal and maintenance of bin.
•Inlet Deflector
Knocks down larger particles into the hopper reducing bag abrasion and increasing bag filter life.
•Heavy-duty flexible metal inner bag coils
Inserted into filter bags keeps bags open to maximize airflow and assist in knocking dust off during cleaning cycle.
•Bag-Release Screws
Allow for easy removal of bags.

Electrical supply 400v/ 3ph / 50Hz / 5.5 kW
Dimensions 880 x 820 x 2350 high
Weight

pdf icon Print / Download McCluckie Dust Extractor Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
