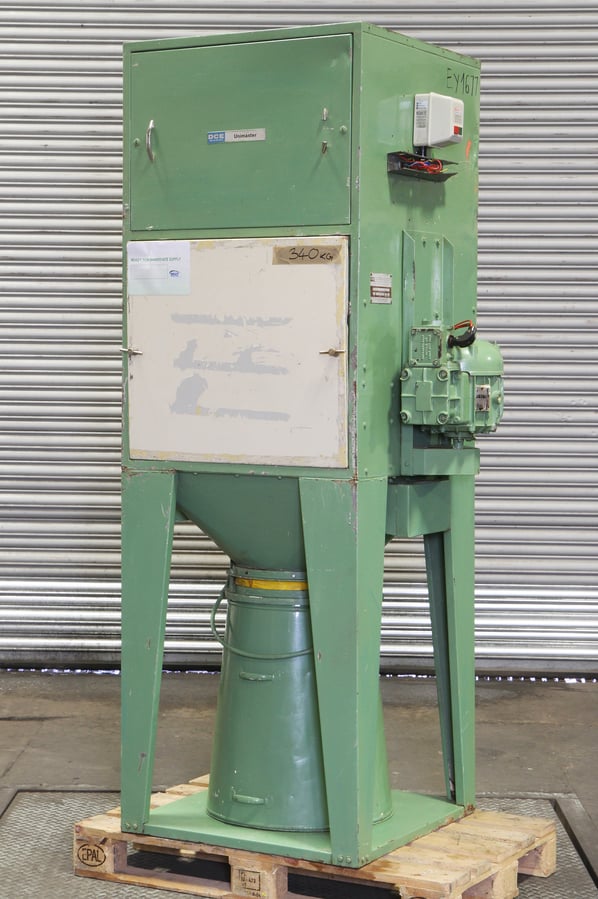

Donaldson Torit (DCE) Dry Type Dust Extractor

Stock No
EY1677
Manufacturer
Donaldson Torit (DCE)
Model
UMA 154 / G5
Serial
3606
New or Used
Used (Second Hand)
Approx Duty CFM / M³/Hr
750//1275
Filter Area ft² / m²
150//15
Other Info
5 HP /3~ 50 Hz
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm)
1040 x 850 x 2250

Description

The Unimaster dust collector from Donaldson Torit is designed to maximize dust collection and the life of collector components for years of extended service.

In production for over 40 years now with hundreds of thousands in use worldwide, the Unimaster collector’s compact design and quiet operation is an industry success.

A self-contained collector with everything needed to begin collecting dust, the Unimaster comes complete with fan and fan motor, automatic shaker and shaker motor, and system controller making installation quick and easy.

Since the automatic shaker cleans the bag filters, there is no need for expensive compressed air.

Ideal for intermittent operations in plant processes, the Unimaster can be used as a central system or at the point of dust generation.

Benefits

- Compact Design
- Minimizes floor space and fits in virtually any plant layout.
- Versatility
- Offering maximum air handling capacity in a compact design.
- Quiet & Efficient Operation
- Motors and fan are enclosed in collector housing to minimize noise.
- Easy Maintenance


UNIMASTER PERFORMANCE:

Quick-Release Lever
Allows for easy removal and maintenance of bin.

Heavy-Duty Flexible Metal Coils
Inserted into filter bags keeps bags open to maximize airflow and assist in knocking dust off during cleaning cycle.

Bag-Release Levers
Allow for easy removal of bags.

UNIMASTER STANDARD FEATURES

- Integral Fan and Fan Motor
- Integral TENV Shaker Motor
- Various 280 x 140mm Inlet Location left, right or rear
- Hopper Discharge to 100l Bin Base with Quick Release Lever
- Push-Button Controls
- Motor Starter

pdf icon Print / Download Donaldson Torit (DCE) Dry Type Dust Extractor Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
