Machines & equipment for sale

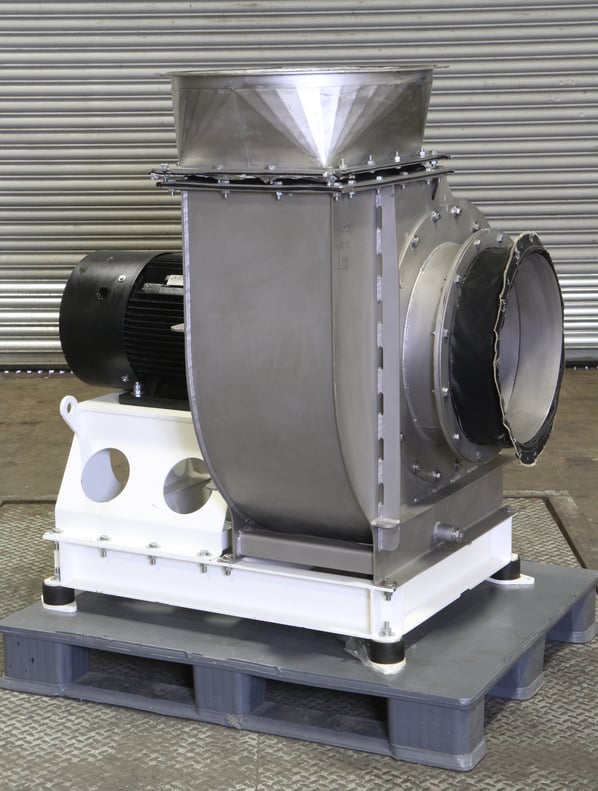

Elektror Stainless steel Atex rated centrifugal fan

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability
Available for immediate collection
Stock No
FX116
Manufacturer
Elektror
Model
CFL2 450-D3-RD0-180M
Year of Manufacture
2014
Serial
03/151498
New or Used
Used (Second Hand)
Other Info
Unused. Atex Rated
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
450
External Dimensions (WxDxH mm)
1100 x 1000 x 1300

Description

Medium - pressure centrifugal fan with direct drive. The fan is intended for extraction systems of polluted air, and pneumatic transport of chemical fumes. Fan is designed to work in explosive atmospheres meeting requirements of the European ATEX Standards (i)II 2D c IIA T1 / (o) IIA T1

 Application

  • local extractors
  •  chemical industry
  • transport of chips, sawdust, granulates,
  • Car exhausts.
  • Mining  industry and construction

 Electric

  • three-phase motor  400V, 50Hz  22KW  ( ATEX Standard  II 3D EX to IIIB T 120 deg. C / II 3G E hA II C T3)
  • IP65
  • Isolation Class F
  •  Motor compatible with frequency adjusting controls
  • a medium fan direct driven
  • welded  stainless steel impeller
  • welded housing made of stainless steel steel
  • maximum  temperature of the medium to be pumped 40 ° C
  • ambient temperature of the engine from -20 ° C to + 40 ° C

Construction of Fan

  • a medium fan direct driven
  • welded  stainless steel impeller
  • welded housing made of stainless steel steel
  • maximum  temperature of the medium to be pumped 40 ° C
  • ambient temperature of the engine from -20 ° C to + 40 ° C

Performance

  • Volume flow: 15840 m3/h
  • Medium Density: 1.19 kg/m3
  • Total Pressure: 3454 Pa
  • Static Pressure: 3000 Pa
  • Shaft Power: 17.8 kW
  • Nominal Rotation: 3374 1/min
  • Max Rotation: 3374 1/min

pdf icon Print / Download Elektror Stainless steel Atex rated centrifugal fan Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
