Machines & equipment for sale

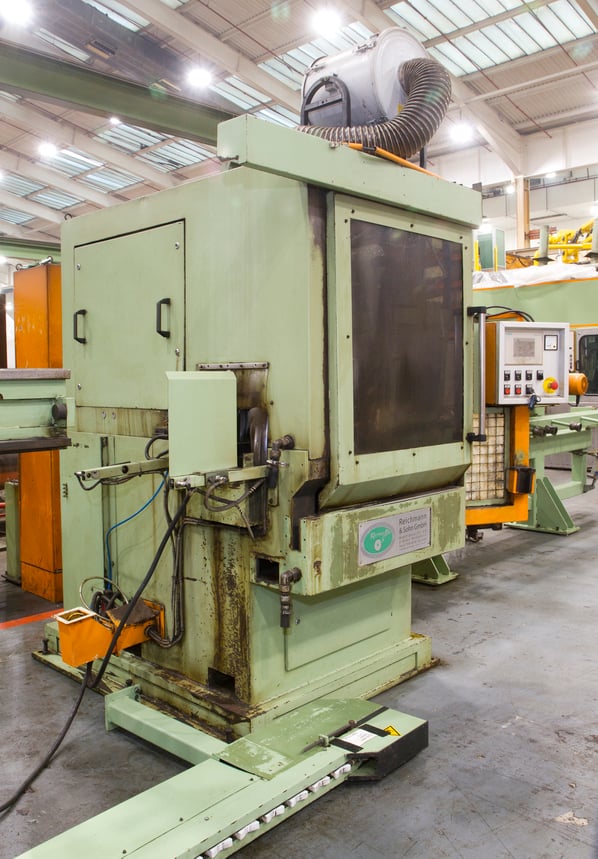

Reichmann Auto Saw

Direct From Site Clearance

Price [?]
Please call on +44 (0) 1922 45 8000
Part of a Direct Site Clearance
JCB Hydraulic Bar, Hard Chrome Electroplating and Finishing Cell
Stock No
JCB020
Manufacturer
Reichmann
Model
NTS 400
Year of Manufacture
2002
Serial
0209067.001
New or Used
Used (Second Hand)
Other Info
Cutting Speed 80m/s
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm)
4600 x 15,400 x 2700

Description

Wet Cut Off Saw Machine NTS - 400

Machine Items:-

  • Infeed beam gripper servo positioning.
  • Outfeed beam gripper servo positioned.
  • Coolant Mag and Paper filtration.
  • Saw unit.
  • Losma Extractor.
  • Specification: Cuts bar sizes 25mm-75mm Ø
  • Cuts soft bar or induction hardened bar material
  • Auto Infeed : 1000 mm to 6000 mm
  • Auto Outfeed : 250 mm to 2000 mm
  • Control : SIMATIC CP27
  • Programmable : Single and Nesting
  • Number of Abrasive blades (250+)
  • Number of spares (Miscellaneous)

Cutting wheel dimensions:-

  • Outside Ø - Max Ø 458 mm
  • Inside Ø  - Ø 25.4 or 40 mm
  • Thickness - 3 mm or 4 mm

Work piece Dimensions:-

  • Ø 25mm to Ø90 mm
  • Max. length. 6200 mm

Pneumatic
6 Bar

Power requirements

Voltage ~ 415v 50cs 3ph
Current ~ 230v AC
              ~ 24v DC
Connect ~ 35 kW
Cut off motor ~ 18.5 kW
Loading ~ 2.4 + 2.2 kW
Unloading ~ 2.2 + 2.2 kW
Hydraulic ~ 4 kW
Band filter ~ 0.37kW
Pump ~ 1.1 kW
Oil dust separator ~ 0.37 kW




pdf icon Print / Download Reichmann Auto Saw Datasheet

Additional files

Reichmann automatic saw

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
