Machines & equipment for sale

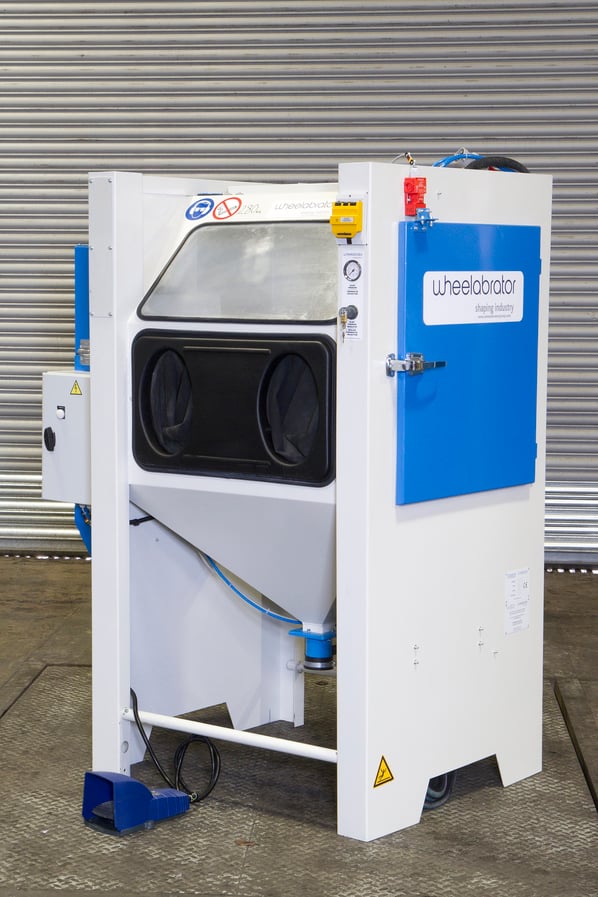

Wheelabrator Ventus suction venturi shotblast cabinet

Stock No
SX844J
Manufacturer
Wheelabrator
Model
Ventus 92S
Year of Manufacture
2017
Serial
661730
New or Used
Used (Second Hand)
Work Envelope (WxDxH mm)
930 x 645 x 740
Work Handling Method
Manual
Other Info
Hardly Used
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
300 kg
External Dimensions (WxDxH mm)
1500 x 1000 x 1850

Description

The Ventus 92S suction fed air blast cabinet has been designed specifically for production applications where a less aggressive surface treatment is required.

It offers advanced features to ensure efficient operation and maximum operator comfort. It incorporates a separate dust collector which minimises dust emission from the cabinet.

Typical applications;

  • Cosmetic finishing
  • Mould cleaning
  • Corrosion removal
  • Glass etching
  • Paint stripping
  • Preparation for painting,
  • Bonding and plating
  • Rust and heat scale removal

Features:

  • Low noise levels
  • High ventilation rate for good visibility
  • Robust construction
  • Large viewing window
  • Elliptical glove ports to suit a wide range of operator sizes
  • Internal blow down gun
  • Anti-static gauntlets
  • Adjustable feed valve for superior,even abrasive feeding
  • Interlocked door

Basic specification:

Enclosure W x D x H: 896 x 796 x 800 mm
Dust extractor dimensions: W x D x H - 500 x 580 x 1000mm
Power consumption: 0.55 kW
Air consumption (max): 1.1m3/min (38 cfm)
Lighting level (average): 900 Lux
Dust collector efficiency: 3 mg/m3
Electrical supply: 400V, 50Hz, 3 phase

Recommended media:

Glass beads: 45/85 - 400/800
Aluminium oxide: 180/220 - 24/30
Weight - 57kgs

pdf icon Print / Download Wheelabrator Ventus suction venturi shotblast cabinet Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
