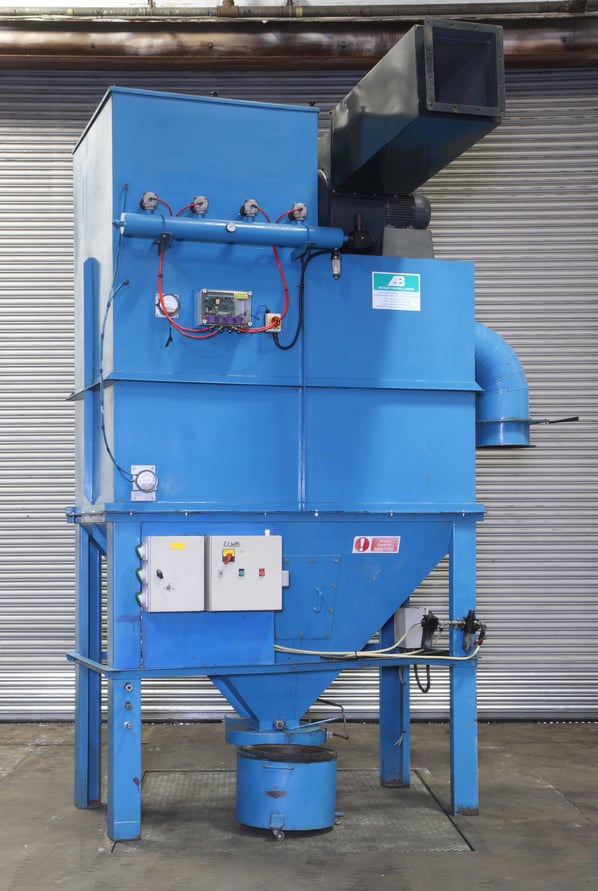

AB Dust Control Limited PCC16 Pulse Jet Cartridge Extraction Unit

Stock No
AB Dust Control Limited
Year of Manufacture
New or Used
Used (Second Hand)
Approx Duty CFM / M³/Hr
Filter Area ft² / m²
Other Info
Substantial fan 'silencer' fitted
Our Central Warehouse, Aldridge, UK
Weight (kgs)
1315 kg
External Dimensions (WxDxH mm)
3100 x 2200 x 4040


The PCC16 downflow extractor delivers optimum performance and is one of the best value dust collectors available in today’s marketplace.

The PCC16 advantage can be found in the collector’s design featuring a ledgeless hopper in combination with proprietary Nanoweb filter media and
reverse pulse cleaning technology, the PCC16 offers strong performances in traditional applications such as metal and wood working, which all adds up to long-term savings and improved performance in most applications

Dust laden air enters the filter in a controlled manner at low velocity around the top of the cartridge area.

The air passes through the filter cartridge, depositing dust on the outside of the cartridge. The cleaned air filters to the clean air chamber at the top of the unit.The dust build up on the outside of the cartridges is removed by short bursts of compressed air, directed down inside the cartridges.

The operation of the cleaning system is that a row of cartridges is cleaned at a time by means of rapidly acting Guyon diaphragm valves.

Each of these diaphragm valves are operated by solenoids under the control of solid state timer unit which enables adjustment of pulse duration and frequency

The filter casing is manufactured from 10SWG  steel, suitably stiffened

The hoppers are also manufactured fro 10 SWG steel



pdf icon Print / Download AB Dust Control Limited PCC16 Pulse Jet Cartridge Extraction Unit Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
