Machines & equipment for sale

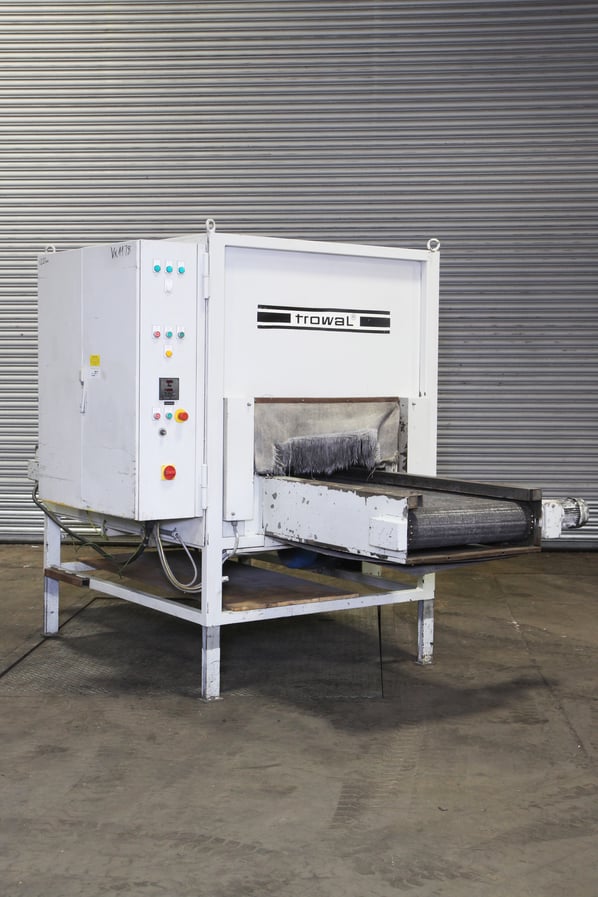

Walther Trowal Flat bed mesh belt dryer

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Seen working by RSW, Good Condition
Stock No
VX1178
Manufacturer
Walther Trowal
Model
TDA 600.3
Year of Manufacture
1989
Serial
913274
New or Used
Used (Second Hand)
Capacity
600 wide x 1600 length x 300 high
Type
Continuous Flat Belt Electric Dryer
Other Info
Heavy Duty Stainless Steel Mesh Belt
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
1220 kg
External Dimensions (WxDxH mm)
1970 x 3500 x 2180

Description

This second hand Wheelabrator Walther Trowel TDA600.3 belt dryer is designed for the continuous drying of work pieces after previous wet finishing processes.

The Walther Trowal hot air belt-driers are designed to dry work pieces with hot air. Ideally suited for:

Components, which that can not impinge on each other, components with difficult to reach cavities where the drying medium may get lodged in the holes and long and bulky objects.

Functional principle

The components are transported through a drying tunnel on a variable speed wire mesh belt. The drying takes place with blown hot air which is constantly recirculated by a blower fan uniformly heating the drying tunnel.

Technical features -

- Optimum drying conditions by Infinitely adjustable operating temperature
- Variable speed adjustment of the drying belt
- Low energy consumption due to the substantial insulation provided(> 100 mm)
- No noise protection required!
- Stainless steel wire mesh belt.
- High pressure air knife to blow mounted over the belt at the entry to the drying tunnel.


pdf icon Print / Download Walther Trowal Flat bed mesh belt dryer Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
