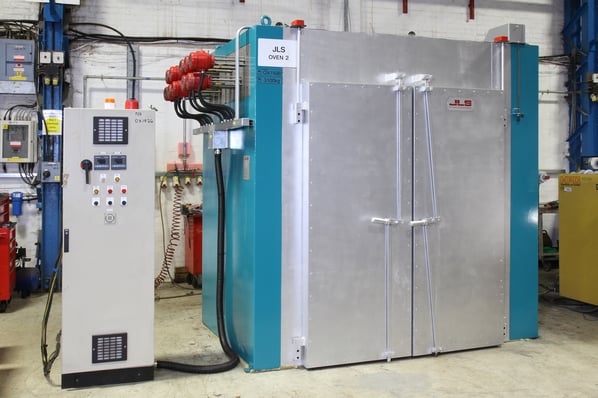

JLS (Redditch) Ltd JLS Oven

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Available for immediate collection
Refurbished by RSW, Good Condition, Seen powered at RSW
Stock No
JLS (Redditch) Ltd
JLS 300C Electric Oven
Year of Manufacture
New or Used
Used (Second Hand)
Internal Size (WxDxH mm)
1500 x 1300 x 2000
Max Temp
Other Info
Max Heating Rating 54KW
Our Central Warehouse, Aldridge, UK
Weight (kgs)
External Dimensions (WxDxH mm)
3250 x 1800 x 2700


JLS Ovens are robustly constructed from heavy gauge steel plate and rolled sections with a powerful airflow system incorporating a low pressure, high volume horizontal air- recirculating fan delivering uniform temperature distribution

The oven is configured to suit most applications including high temperature Drying, Curing, Stoving, Annealing, De-embrittlement, Stress relieving, Baking, Heat Treatments, Pre-Heating, and De-Coring etc.

The front loading Oven is supplied with swing aside heavy duty hinged doors, and a robust insulated floor, making it suitable for a wide range of, industrial batch production requirements.

The design of the oven incorporates 3 rear mounted explosion relief panels and a fresh air intake that when used for a process that may produce either water vapour, solvents or other volatiles, these gases can be easily evacuated from the work chamber by opening the fresh air inlet to introduce cooler fresh air into the suction airflow. This can also be used as a means of controlled cooling.

Also  fitted are 10 off Eltron Cromalox 5 watt heater elements providing 50kw of heat power. Manufactured to EN50018 designed for potentially explosive atmospheres.

Suitable for a wide range of industrial process applications such as:

Ovens for the Aerospace industry

  • Solution and ageing treatment of aircraft components.
  • Curing of aircraft composites.
  • Stoving of high temperature coatings.
  • Compliance with BAe, Rolls-Royce and Boeing specifications.

Ovens for the Aluminium industry

  • Solution and ageing treatments for contract heat treaters.
  • Pre-heating billets.
  • Annealing.
  • Extrusion press die heating.

Ovens for the Glass industry

  • Annealing ovens.
  • Stress relieving of glass components.
  • Stress relieving of moulds.

Ovens for the finishing industry

  • High temperature paint stoving.
  • Drying.
  • De-embrittlement.

Ovens for the Electrical industry

  • Motor winding burn-out.
  • Pre-heat for shrink fitting.

Ovens for the foundry industry

  • Core drying and mould drying.
  • De-coring.
  • Launder drying.
  • Scrap drying.

With usable features such as:

  • Front loading twin doors
  • Eurotherm proportional digital temperature controller.
  • Eltron Cromalox heater elements for explosive atmospheres.
  • Manual fresh air vent for the removal of volatile atmospheres.
  • Dual explosion relief panels for use with potential explosive atmospheres.
  • High temperature insulation for heat treatment processes.



pdf icon Print / Download JLS (Redditch) Ltd JLS Oven Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
