Grindingmaster Through feed Flat Belt Linishing Machine

Stock No
PX1105
Manufacturer
Grindingmaster
Model
MSB 600
Serial
KT984-05
New or Used
Used (Second Hand)
R.P.M.
1500
Hp/Kw
15//11
Other Info
Small footprint machine
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm)
1255 x 1260 x 1950

Description

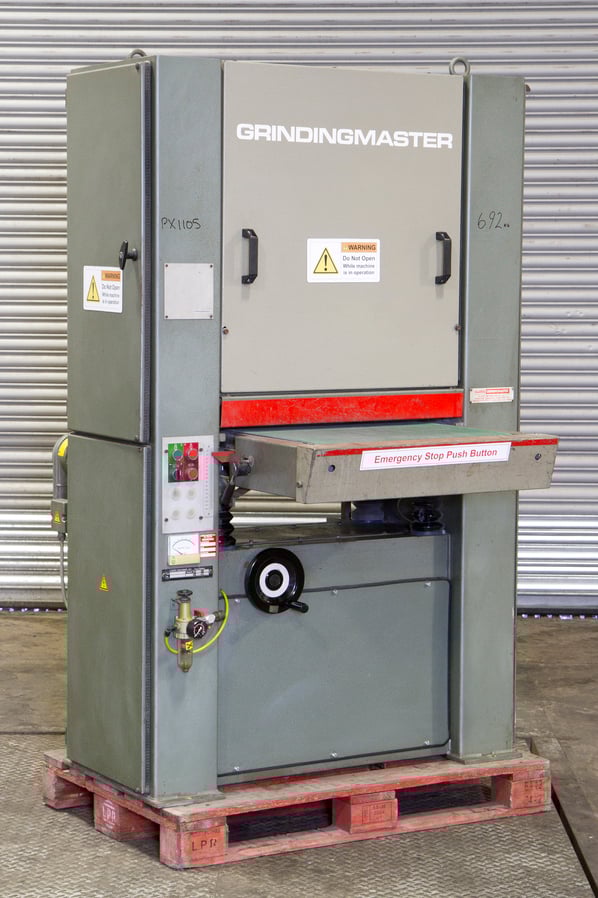

This pre-owned Ellesco Grindingmaster is a premier industrial metal working multi finishing machine.
The MSB-600 is a 600 mm wide belt dry working Grindingmaster that is equipped with a powerful 11 kW motor allowing it to process the toughest and heaviest jobs around.

Typical process applications covered by this machine:

  • Stock removal of multiple individual parts and sheet materials
  • Sizing and finishing of parts and sheet materials
  • Deburring punched, nibbled, sheared or laser-cut sheet metal parts.
  • Calibrating or keying carbon, rubber, wood or other soft materials.
  • Grain finishing of any material.

Standard features include:

  • Centralised operator control panel.
  • Full 600mm working width
  • 950 mm table load height
  • Wide belt head with fine adjustments of contact roll, 150mm overall clearance
  • Conveyor bed on 4 heavy duty precision spindles,
  • 4 x ridged, precision made, rubber coated, workpiece hold down rolls with 200mm centres.
  • Dust extraction funnel
  • Load amp indicator
  • Belt oscillation
  • Front edge safety bump E stop
  • Pneumatic tensioning
  • Air actuated braking


Available to purchase separately from our dust control section, you will be able to find a suitable dust control plant to match your particular process application whether it be wet or dry.

pdf icon Print / Download Grindingmaster Through feed Flat Belt Linishing Machine Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
