Machines & equipment for sale

Vixen Surface Treatments Tristar

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition, Current Model
Stock No
DX1284
Manufacturer
Vixen Surface Treatments
Model
Tristar TS504
Year of Manufacture
1998
Serial
18
New or Used
Used (Second Hand)
Work Envelope (WxDxH mm)
Ø500 x 2170
Process Stages
Part Immersion, Spray Wash, Rinse & Dry
Other Info
Continuous 4 Stage Parts Washer
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
1050 kg
External Dimensions (WxDxH mm)
4000 x 1600 x 1350

Description

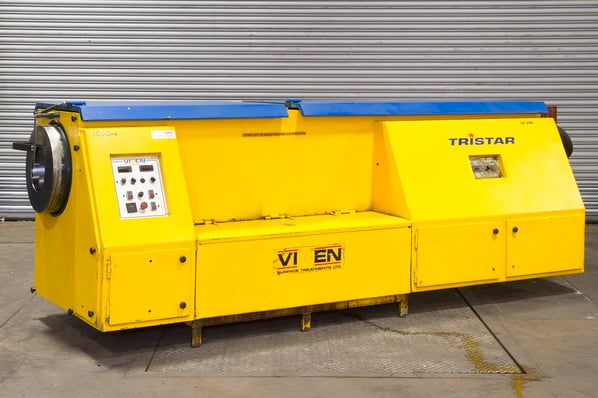

Vixen Tristar 500

The Tristar range of machines have been developed to provide a continuous throughput of parts that need to be degreased, rinsed and dried in large quantities.

 The standard four stage model includes immersion, wash,  heated rinse and hot air dry stages.

The Tristar Conveyor is fitted with a continuous moving (variable speed) stainless steel drum that conveys the components through the different wash, rinse & dry processes, and was developed to wash parts that cannot be tumbled due to risk of damage.

The Tristar houses a rotating drum which has an 'Archimedes' continuous screw fitted to the internal wall. This means that as the drum rotates, the turning of the screw moves the parts forwards. The parts go through four stages within the drum, Immersion wash, spray wash, spray rinse and hot air dry.

This Tristar 500 machine has been developed to provide a continuous throughput of parts that need to be degreased and dried in large quantities on a continuous basis from such processes such as stamping, mouldings and CNC turned parts.

The machine is further enhanced with the fitted optional extra's of a vibratory feed chute for the controlled feed of parts, an offload chute for the collection of parts and a coalescing oil skimmer for the maintenance of the wash solution by the removal of oil and grease.

Tristar 500 Features:

  • Electricity Supply - 40-60 amps: 3 phase N+E
  • Fluid Volume Wash: 280 litres
  • Fluid Volume Rinse: 225 litres
  • Drum Diameter: 500mm
  • Standard Perforation Sizes: 3-15mm
  • Water Heater Wash: 12kw
  • Water Heater Rinse: 6kw
  • Dry Heating: 3 x 1.3kw
  • Drum Speed: 0-10 RPM
  • Filtration Return To Tank: twin 800 micron
  • Pump Pressure: 3 bar
  • Volume Litres/Minutes: 130 litres
  • Independent oil coalescing oil filter
  • Vibratory feed chute
  • Discharge chute

pdf icon Print / Download Vixen Surface Treatments Tristar Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
