Vacublast (Wheelabrator) Ventus 150 PR Shotblast cabinet

Direct From Site Clearance

Direct Site Clearance Price [?]
£ Login or Register for price
Clearance ends
10 January 2022 15:00 GMT while stocks last
Part of a Direct Site Clearance
Unique Shotblast Room & Wheelabrator Vacublast Ventus 150P Shotblast Cabinet
Condition
From a working environment, Good Condition
Location
Slough, UK
Stock No
CMF200
Manufacturer
Vacublast (Wheelabrator)
Model
150 PR
Year of Manufacture
2007
Serial
220776
Condition
From a working environment, Good Condition
Work Envelope (WxDxH mm) [?]
1500 x 1500 x 900 Ø1200 table
Work Handling Method
Manual load auto blast
Other Info
Removable rotary table
Location
Slough, UK
Weight (kgs)
525 Kg (Cabinet only)
External Dimensions (WxDxH mm) [?]
2650 x 1500 x 2050

Description

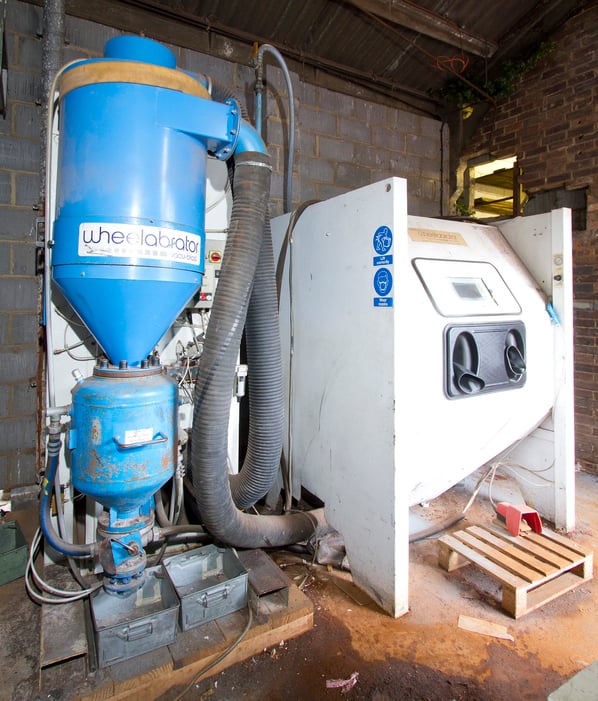

Wheelabrator Vacublast Ventus 150 PR Pressure Fed Blast Cabinet

The Ventus pressure fed air blast cabinets from Wheelabrator have been designed specifically for production applications where a high work output is required, combined with optimum abrasive quality.

In this standard hand blast cabinet, the blast nozzle is operated manually by the operator through the armholes and can be used with all dry and free running abrasives available on the market today.

The Wheelabrator Ventus 150 PR is a large capacity pressure blast cabinet with manual rotary table, separate 30 litre blast generator pressure pot and reclamation cleansing unit, designed and built for the aerospace industry.

This used Vacublast pressure fed hand blast cabinet is essential when removing heavy corrosion, tough coatings or when high production rates are required.

Cleaning rates are up to 5 times the speed of a suction venturi cabinets and are suitable for use with a wide range of abrasives such as Steel shot, Aluminium oxide, Glass bead and walnut shell etc.

Pressure feed machines are commonly used in high production environments or on applications such as peening, surface coatings removal, surface preparation and general cleaning.

Blast chamber

The cabinet has 1300 x 1000 mm doors fitted to the left and right hand sides of the machine and includes a throughput entry gate for the passing of long objects such as pipes and rails through the cabinet . The doors on this range of machines offers an effective seal to the chamber for a leak free operation.

Complete with a matching reverse pulse dust control plant, for the removal of the dust from the cabinet and provide the power to run the media recovery system.

Additional cabinet features include:

- Internal lighting
- large viewing window
- Large operator armlets
- 1.2 mtr rotary table
- Simple and safe foot pedal blast control
- 30 litre pressure feed pot with cabinet mounted blasting pressure regulator.

The extractor attached blast generator and reclamation cleansing unit.

The blast media is drawn through the base hopper and passed through a cyclonic separator were the amount of waste separation can be controlled by the setting of the air wash eductor. The air wash is set to retain the reusable media and reject the undersized and waste dust to the dust collector.

The reusable media passes from the cyclone separator over a full width magnetic separator before dropping onto a vibrating debris screen which removes any over sized particles and debris from the process.

Located at the bottom of the storage hopper is the 30l pressure vessel which stores the blast media ready for use.

Additional secondary filter is mounted to the top of the dust extractor to further add to the dust reduction.

Typical Media Capacities

Cabinet footprint of WxDxH - 1700 x 1640 x 2420

pdf icon Print / Download Vacublast (Wheelabrator) Ventus 150 PR Shotblast cabinet Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
