Machines & equipment for sale

Nederman Oil Mist Extractor

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
Excellent Condition
Stock No
EX236
Manufacturer
Nederman
Model
12670168
Year of Manufacture
2009
Serial
09363-00
New or Used
Used (Second Hand)
Approx Duty CFM / M³/Hr
6592//11200
Filter Area ft² / m²
882//84
Other Info
Secondary Hepa Filter
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
900kg
External Dimensions (WxDxH mm)
1450 x 1550 x 2540

Description

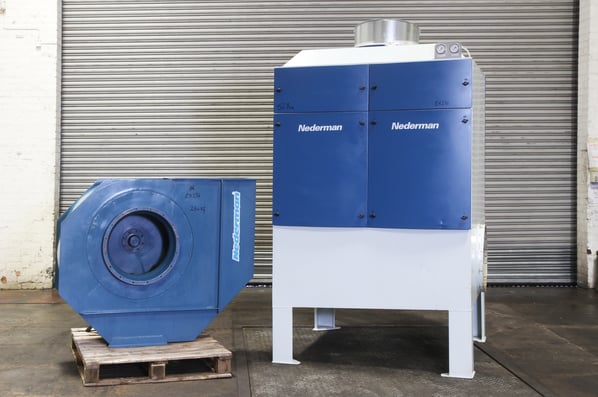

Nederman NOM 112 Oil Mist Extractor

The Nederman oil mist filters NOM are designed for use in conjunction with machining work where emulsions are used as the coolant/lubricant. They can also be used in the metalworking press industry, lathing, milling applications, for machines stamping and pressing steel plates, industrial washing machines, abrasive water jets etc.

In all metal fabrication with oil mist troubles, these filters will fit into a ducting system, connected to each machine.

All units are equipped with pressure gauge for control of filters as well as an indication for need of cleaning (self draining). Suitable for emulsions and neat oil.

 Additional Technical Information

  • Inlet Ducting diameter 500 mm
  • 7.5 kW fan
  • 400/690v 3ph 50hz

Advantages

• Low maintenance cost

• Self draining filter

• Easy to install

• Superior filtration efficiency

• High capacity 11 200m3/h

Product name

NOM 112

Filter efficiency

97,5

Compressed air requirement

No

Compressed air consumption

No

Installation

Indoor

Material Housing

Powder coated sheet metal.

Suitable for combustible dust

False

Material recycling (% weight)

90

Filter Area (m2

84

Capacity (max airflow m3/h)

11200

Operating Temperature

5 - 60 C

pdf icon Print / Download Nederman Oil Mist Extractor Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
