Machines & equipment for sale

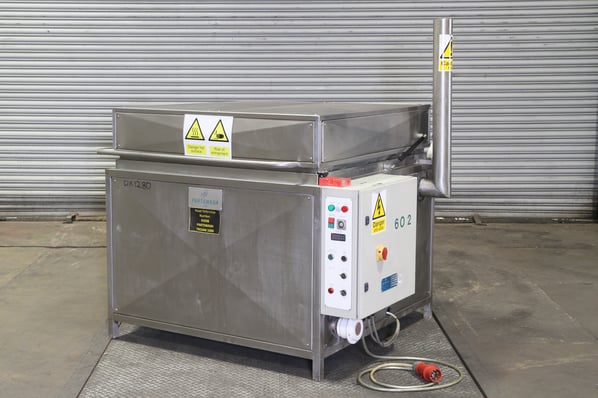

Technowash Heavy Duty Basket Wash Machine

Stock No
DX1280
Manufacturer
Technowash
Model
AQT1000
Year of Manufacture
2004
Serial
80034
New or Used
Used (Second Hand)
Work Envelope (WxDxH mm)
Ø1000 x 500mm
Process Stages
Single Stage
Other Info
Stainless Steel Machine
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
466
External Dimensions (WxDxH mm)
1750 x 1650 x 1730mm

Description

This pre-owned Trojen Technowash  AQT 1000 is a top performing heavy duty top loading spraywash machine.
The Trojan range of automatic top loading parts washers, are ideal for all heavy duty general purpose spray wash cleaning applications.

Constructed from stainless steel, the machines is double skinned and has a 35mm sound and thermal insulation fitted as standard.

A combination of a fully motorised component basket, and spray bars positioned above below and to the side of the basket, ensure that the Trojan range delivers the best cleaning performance available.

Other standard features include, digital display fluid temperature controller, corrosion resistant electric fluid immersion heaters, gravity fed drain tap and auto reset wash process cycle timer.

TYPICAL APPLICATIONS:

Engineering
Manufacturing/Remanufacturing
Aerospace Industry
Printing Industry
Transport Companies
Metal Pressing Industry
Commercial garages
Metal Casting Companies
Railway Industry

SAFETY & SECURITY:

The Trojan range of automatic degreasing equipment comes with a large variety of safety features all fitted as standard.

The fluid tank is fitted with low level fluid protection to ensure that the machine is never allowed to run without sufficient water in the the fluid tank.

The machine lid is fitted with gas assisted struts and a  lid safety interlock.

The control panel comes complete with emergency stop circuit so the Operator has full control at all times.

In addition the machine is aqueous based and can be used most effectively with specially chosen non-classfied biodegradable detergents, which has environmental benefits, and minimises costly disposal needs.

TECHNICAL SPECIFICATION: Trojan 1000

-Power Supply (mains electric): ph/v 3ph 415 volt 32Amps
- Overall machine Height: mm 2060
- Overall machine Width: mm 1620
- Overall Machine Depth: mm 1450
- Component Load/Unload Height: mm 950
- Motorised Component Basket dia: mm 1000
- Standard Product Height Clearance: mm 450
- Component Basket Mesh Size: mm 25
- Safe Working Load Capacity: kg 250
- Wash Pump Flow Rate: ltr/min 140
- Wash Pump Spray Pressure: bar 4

pdf icon Print / Download Technowash Heavy Duty Basket Wash Machine Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
