Machines & equipment for sale

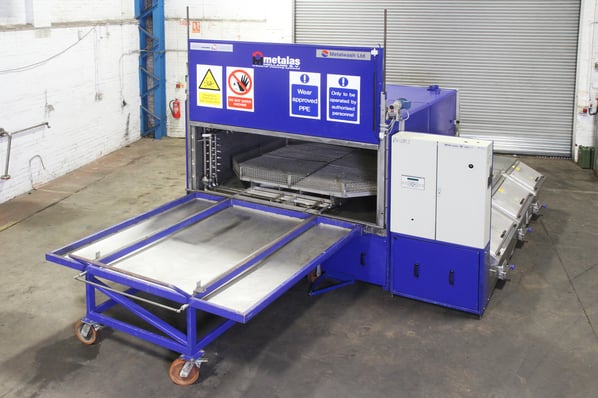

Metalas MCF 2800 3 stage Multi Process Front Loading Cleaner

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Excellent Condition
Stock No
DX1279J
Manufacturer
Metalas
Model
MCF 2800/3
Year of Manufacture
2003
Serial
5122105
New or Used
Used (Second Hand)
Work Envelope (WxDxH mm)
2200 x 2200 x 1000mm
Process Stages
3 Stage multi purpose machine
Other Info
This machine was originally £98,000.00
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm)
3770 x 3115 (6960 Inc Trolley) x 3880m

Description

MCF 2800 Three tank machine

This machine will de-grease, de-paint, and de-rust steel components all in one loading process.

The machine is fitted with E pipes that can be swung in if smaller components are being cleaned for a more effective and faster cleaning result. Working at excellent pressure and flow rates, this machine is capable of cleaning a variety of components quickly and efficiently without the use of costly labour.

The three tanks can be utilised together or in pairs by the programming facility and one tank has an upright pump for the ability to use strong caustic chemical for the removal of heavy rusting.

This machine will also prove an effective tool for achieving a high level of cleanliness after the manufacturing process and can also be used for phosphating components before painting.

The three stage process enables a vast array of applications to be achieved.

The machine has a load capacity of 1000kg.

This machine was originally rented by the Ministry of Defence on a full service rental for the stripping of multiple layers of paint and surface damage to military vehicle parts. The machine is in excellent condition as it was maintained and serviced every four weeks throughout its life by a full trained technician..
This machine was originally supplied at a cost of £98,000.00 + VAT

SPECIFICATIONS OF MCF 2800 3 Tank

Overall dimensions

Width 3770 mm
Depth 3115 mm
Depth (Inc Trolley and 3rd Tank) 6960 mm
Height (with door open) 3880 mm

Electrics

Working Voltage 400 V
Control Voltage 24 VAC
Connecting Voltage 120 KVA

Work Load Capacity

Admissible grid load 1000 kg
Maximum Work Height 1000 mm
Basket Size (eight sided) 2200mm sq

Tank Heating (Kw) Tank Capacity

Tank 1. 36KW. 1000 Litres

Tank 2. 36KW. 800 Litres

Tank 3. 27KW. 600 Litres

Services needed for Front loading machines

Ventilation
125mm external diameter (mild caustic resistant)

Compressed Air
8 bar supply

Mains water
Minimum 22 PSI through 22 mm pipe for mains water rinse & tank top-up

Foul sewer
2” BSP female

Electricity
Three phase 415 volt
50Hz / 3ph / 176.3A / 122kV
Total load for MCF 2800 3 Tank - 140kw

Metalwash Support

Metalwash

This machine is available with service and maintenance programme, if required, from the UK Import agent for Metalas. Metalwash are familiar with this machine having previously maintained and serviced this machine at a Ministry of Defence.

Based in Gloucestershire, Metalwash Limited are specialists in automated cleaning solutions for many different industries including mechanical, construction and the automotive industries.

pdf icon Print / Download Metalas MCF 2800 3 stage Multi Process Front Loading Cleaner Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
