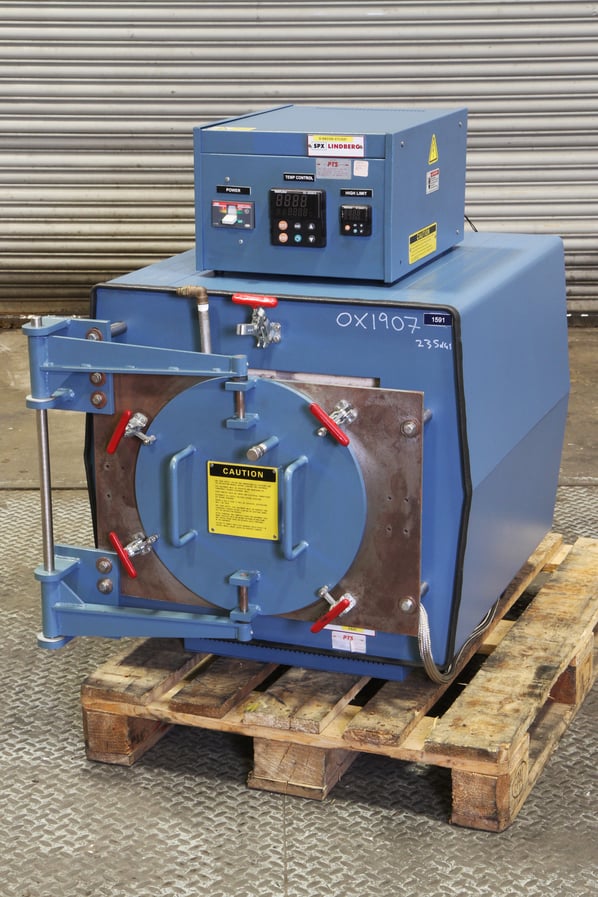

Lindberg Atmosphere Retort Box Furnace

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Excellent Condition, Current Model
Stock No
OX1907
Manufacturer
Lindberg
Model
51542-HR
Year of Manufacture
2011
Serial
1104000041-02
New or Used
Used (Second Hand)
Internal Size (WxDxH mm)
242 x 362 x 222
Max Temp
1050°c
Other Info
Can be upgraded to Hydrogen Atmosphere
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm)
740 x 970 x 710

Description

The 51542-HR Box Furnace

Designed to deliver outstanding high-temperature performance, Box furnaces from Lindberg incorporate the most recent technological advances. Efficient heating element designs, high-temperature graded insulation and advanced temperature controls combine to deliver dependable, long-life heat sources. Each furnace is designed for ease of maintenance, convenience of operation and exceptional performance

Features

• Individual heating elements at chamber top, bottom and sides for uniform distribution

• High temperature alloy for continuous use temperature of 1090° C (1995° F)

• O-ring seal between door plug and retort plate • Toggle clamps for positive seal

• Helical coiled, high temperature alloy wire elements for extended service life

• Atmosphere sealed chamber • Hinged door plug (included in all retorts with - H designation)

• Atmosphere inlet and outlet tube and one monitor thermocouple port

• Unique Moldatherm ceramic fibre insulation to allow for rapid heat up, recovery and cool down rates

• Heavy duty inconel hearth plate supports load and protects the furnace from damage to spillage

 Common Uses;





pdf icon Print / Download Lindberg Atmosphere Retort Box Furnace Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
