Lunaire Tenney CE96 Oven

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Excellent Condition
Stock No
OX1906
Manufacturer
Lunaire Tenney
Model
CE96
Year of Manufacture
2006
Serial
27496-02
New or Used
Used (Second Hand)
Internal Size (WxDxH mm)
1250 x 2000 x 1200
Max Temp
350° C
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm)
2250 x 2350 x 2050

Description

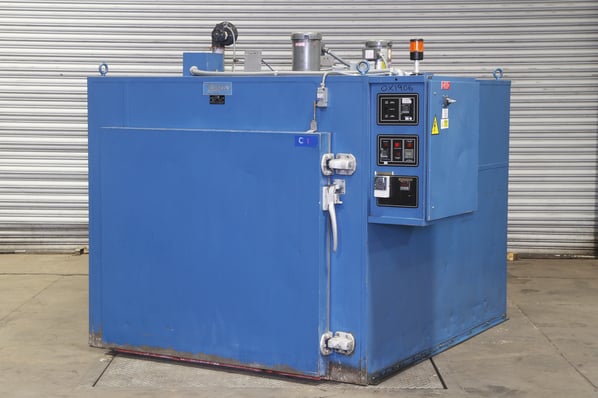

Lunaire/Tenney USA Model CE96, high spec, twin fan high volume air circulated electric 350°C oven with Internal dimensions of 1250w x 2050d x 1220mm high.

The Lunaire/Tenney USA Model CE96 high volume horizontal air circulation system and electric heating system allow for maximum temperature uniformity in performance

Differential airflow switch alerts you if loss of airflow is detected and shuts down oven's heaters.

Features

Open-air nichrome wire heater elements
Centrifugal type blower wheel
Infinitely variable control from full recirculation to full one pass, and optional motorized damper for automatic operation
Side-mounted control compartment for easier control access (60, 75, 80 and 96 cu. ft. models only)
Manually adjustable intake/exhaust system
Enclosed wiring to meet N.E. code, as amended
Performance

Temperature Range (Standard Model):+15°C above ambient to 316°C
Uniformity: +/-1% of setpoint
Resolution: +/-0.1°C

Features

96 cubic foot truck-in oven
Cold rolled steel exterior
Lift hooks
Stainless steel lined
Twin circulation fans for uniform atmosphere
Air flow pressure switches
Incoloy heating elements
Solid-state relay control
Watlow proportional digital controllers
Digital process timer

Construction:

Separated, insulated inner and outer surfaces
Pliable , final seal silicone rubber gaskets on oven up to 650°F
Less energy to maintain temperature
Heavy duty construction
Built around welded, structural steel frame
One-piece construction costs less to install
Pre-tested, ready for operation
Twin blowers to circulate air
Incoloy heating elements


Performance

Circulation fans: 1200 CFM
Heating module: 30KW heat input
Controller Single set point temperature controller

power supply V-ph-Hz 415/3/50 50Amps on a 64amp socket.

pdf icon Print / Download Lunaire Tenney CE96 Oven Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
