Heavy duty mild steel Centrifugal Fan

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
Good Condition
Stock No
FX113
Model
27CBI
Serial
23170
New or Used
Used (Second Hand)
Approx Duty CFM / M³/Hr
10000//17000
Filter Area ft² / m²
n/a
Other Info
30 kW High Pressure Fan
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
606
External Dimensions (WxDxH mm)
2200 x 800 x 1300

Description

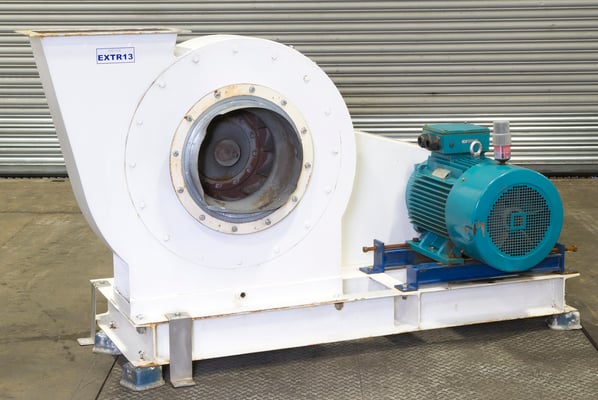

Halifax type 27CBI 30 kW belt driven extraction fan

High static pressure centrifugal Halifax type 27CBI 30kW belt driven extraction fan. Excludes starter.

Casings

The fan casings are of an all welded construction and substantially braced for extra rigidity. Casings up to are made in one piece. The impeller can be removed from the inlet side after taking off the front plate.

Impeller ranges

The impellers are dynamically and statically balanced in accordance with BS. 6861: Part 1: 1987 and ISO 1940/1:1986. They are precision-built components typically made up of twelve blades welded between a substantial back plate and conical shroud. The precision laser cut back plate with blade slots ensures utmost accuracy in the angle and position of blades. Impellers are fitted with a cast-iron center boss, precision bored with a British standard keyway to suit.

R90 Orientation



Refurbishment option includes Starr/Delta starter

pdf icon Print / Download Heavy duty mild steel Centrifugal Fan Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
