Hedinair Multi Purpose Heat Treatment Oven

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Excellent Condition
Stock No
OX1904
Manufacturer
Hedinair
Model
10.10.9 DSH FAC
Year of Manufacture
1988
Serial
65827/2
New or Used
Used (Second Hand)
Internal Size (WxDxH mm)
1500 x 1400 x 1500
Max Temp
250°C
Other Info
High Specification
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
1560
External Dimensions (WxDxH mm)
2450 x 2400 x 1900

Description

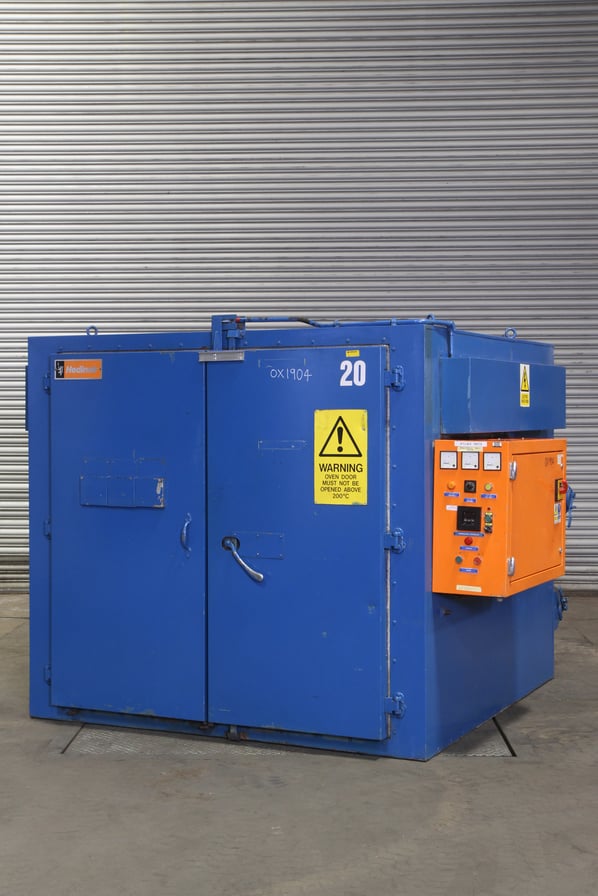

An excellent example of a heavy duty Hedinair box oven featuring the following:

A fine example of a Twin Air Circulated  oven with dual venting systems and twin explosion relief panels for more volatile processes.

Oven has a internal door safety release handle, insulated floor and an externally Variable controlled over temperature unit

- Maximum Temp - 250 Degree Celsius
- 60KW (Kilowatts) - 80 Amperes
- Twin rear mounted air circulation fans for even hot air distribution within the heating chamber during processing.
- Robustally constructed twin locking doors, with internal safety handle.
- Phase load monitoring
- Omron E5CSV Micro processor temperature controller
- Process timer

  • Ideally suited to low temperature thermal treatments such as stress relieving,curing and tempering.

Alternative applications

Pre-heating of ferrous/non ferrous/plastic/wood/glass substrates or curing/stoving suitable coatings

This would make an excellent addition for those processing larger batches or singular large items in a production environment

The Hedinair Large batch oven range is suitable for almost any application from simple drying processes to exacting metal treatments.

Electrical details

  • 400/440v
  • 3ph
  • 50Hz
  • 80 amps per phase
  • Heater load 60kW

pdf icon Print / Download Hedinair Multi Purpose Heat Treatment Oven Datasheet

Additional files

Oven Information

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
