Machines & equipment for sale

Dolfin Top Loading Parts Washing Machine 800mm Basket

Special Offer

Full Price [?]
£ 4,595 (+ VAT)
Special Price (Brand New)
£ 3,995 (+ VAT)
Special offer ends
29 March 2019 15:00 GMT while stocks last
Condition
Brand New, Current Model
Stock No
DX1271
Manufacturer
Dolfin
Model
PYM950
Year of Manufacture
2018
Serial
000193
Work Envelope (WxDxH mm)
800 Ø x 500
Process Stages
1
Other Info
Maximum Workload: 150 kg
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
190 kg
External Dimensions (WxDxH mm)
1300 x 900 x 1450

Description

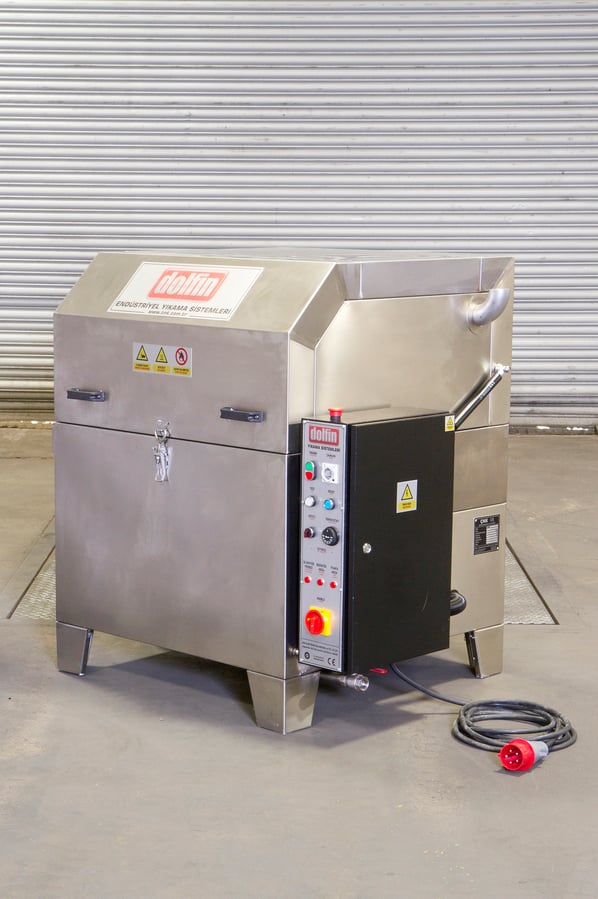

Dolfin PYM 950 Top Loading - Aqueous Washing Machine

The Dolfin PYM 950 is an all stainless steel  cellular type rotary hot wash spray machine, which uses towns water and any number of available environmentally friendly detergents.

The machine is of a double skin construction with an 18 mm cavity insulation gap offering maximum thermal insulation to the hot water tank and extremely strong build rigidity.

Designed to automatically wash / degrease a wide variety of heavy industrial and commercial components.

The operation is very simple; you just load the basket, close the lid, and press start. The cycle is adjustable for both time and temperature and resets automatically each time the lid is opened at the end of the cycle.

The driven wash basket rotates products through an array of spray beams, providing exceptional cleanliness of product. The basket is fully supported by three rollers, ensuring no undue stress or deflection, despite the load weight or its orientation

The inbuilt stainless steel pumps deliver over 100 litres of water every minute providing plenty of power to remove stubborn and difficult contamination from the components. This water is returned to the tank and is filtered to remove debris via an easily accessible collection filter basket.

The spray bars fully envelope the basket offering a full 360°C wash pattern. For ease of loading larger parts, the spray bar can be split in the middle and pushed aside to allow the parts to be loaded directly from overhead with a crane or forklift unit.

The wash cycles of the most components are typically cleaned and flash dried within just a few minutes.

STANDARD FEATURES:

  • Fully automatic
  • All Stainless Steel construction
  • Stainless Steel Pump
  • Exceptionally strong rotary basket
  • Fully Automatic Washing
  • Working temperature up to 90°C
  • Adjustable Time
  • Maintenance Friendly
  • Insulated double skin surrounds the solution tank.

IDEAL APPLICATIONS:

  • Engine Blocks
  • Vehicle Components
  • Gearboxes
  • Manufacturing cells requiring cleaning prior to the next process



pdf icon Print / Download Dolfin Top Loading Parts Washing Machine 800mm Basket Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
