Cooperheat Large Industrial Gas Fired Oven

Direct From Site Clearance

Direct Site Clearance Price [?]
£ 9,000 (+ VAT)
Clearance ends
18 February 2019 14:01 GMT while stocks last
Part of a Direct Site Clearance
Cooperheat Gas Fired Industrial Oven
Condition
From a working environment, Seen working by RSW, Good Condition
Stock No
ACT001
Manufacturer
Cooperheat
Model
Box Oven
Year of Manufacture
1990
Serial
011717
New or Used
Used (Second Hand)
Internal Size (WxDxH mm)
2830 x 3000 x 2500
Max Temp
250 ° C
Other Info
300,000 btu Variable Output Gas Burner
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
3500 approx
External Dimensions (WxDxH mm)
4000 x 3200 x 2960

Description

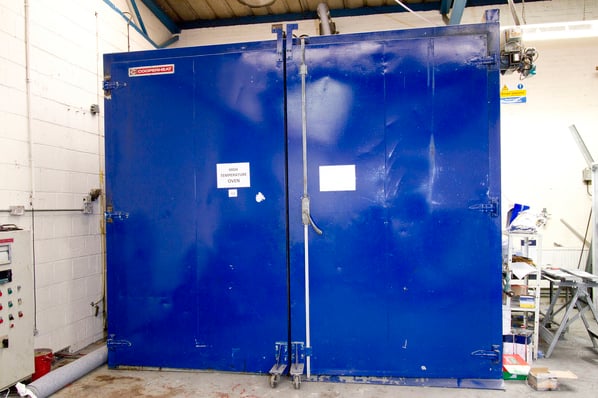

Cooperheat Large Industrial Gas Fired Oven

The Cooperheat air circulated oven is ideal for a number of industrial oven applications, including ASTM testing, epoxy curing, moisture drying, UL testing, aging of electronic components and devices, and other processes and testing requirements.

Originally used in Aerospace industry for vacuum forming of composite materials. With its insulated floor it is suitable for holding weights up to 1000kg and will quickly process high mass parts within a close temperature tolerance.

Cooperheat air circulated oven specifications

  • Temperature range: 15°C above ambient to 250°C
  • Stainless steel interior
  • Uniformity: ±1% of setpoint tbc by the client
  • Control Accuracy: +0.5°C tbc by the client
  • Powered exhaust fan
  • Uniform, Accurate and Reliable FGH series 3000 programmable temperature control, Eurotherm over temperature controller and Chessel temperature chart recorder
  • Horizontal air flow assures uniform thermal performance under all loading conditions.
  • 300,000 btu Variable Output Gas Burner

pdf icon Print / Download Cooperheat Large Industrial Gas Fired Oven Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
